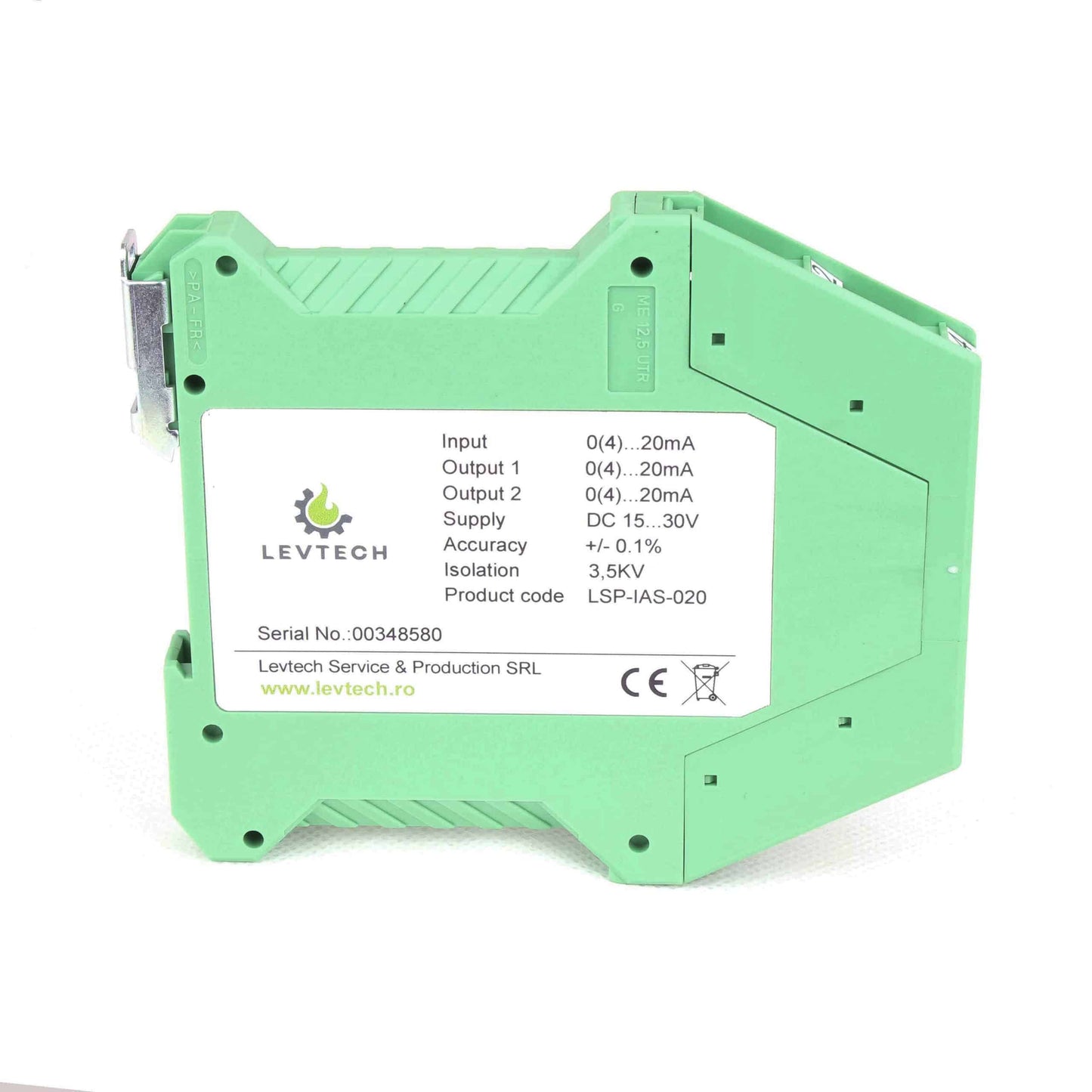

Levtech LSP-IAS-020 Isolated Splitter for Analog Signals 0(4)-20mA

Product Description

Levtech - LSP-IAS-020 The Isolated Splitter for Analog Signals is a vital component in automation systems, facilitating the connection of an analog signal from a measurement device to two processing units. It supports 4-20mA, 0-10V, and 0-5V signals, offering dual output functionality. A notable feature is its four-way Galvanic Isolation, reducing interference and ground potential differences. It’s equipped with 3500VDC isolation, TS-35 DIN rail mounting, +/-0.1% accuracy, and a power LED. Ideal for industrial automation, it reduces errors from noise and signal interference, safeguarding sensitive equipment like PLCs. Manufactured in the EU, it upholds high manufacturing standards.

The Isolated Splitter for Analog Signals is a critical component in automation systems, designed to connect the analog signal of a measurement device to two separate processing units. This ensures accurate and reliable data transmission.

The Isolated Splitter provides dual output functionality. For instance, the output of a temperature transmitter can be connected to the splitter’s input, with output1 linked to a Programmable Logic Controller (PLC) and output2 connected to a display. This configuration enables effective system monitoring and control.

A key feature of the splitter is its four-way Galvanic Isolation. This isolates the Input, Output1, Output2, and the power supply from each other, significantly reducing the impact of interference and ground potential differences.

The Isolated Splitter for Analog Signals is particularly useful in industrial automation. In short, mitigates errors caused by noise and signal interference and protects sensitive equipment, such as PLCs, from potential hazards.

• Four-way isolation
• 3500VDC isolation
• TS-35 DIN rail mounting
• +/-0.1% accuracy
• IP40 case
• Screw terminals
• Power LED
• Supply voltage 24VDC
• Manufactured in the EU
