Product Description

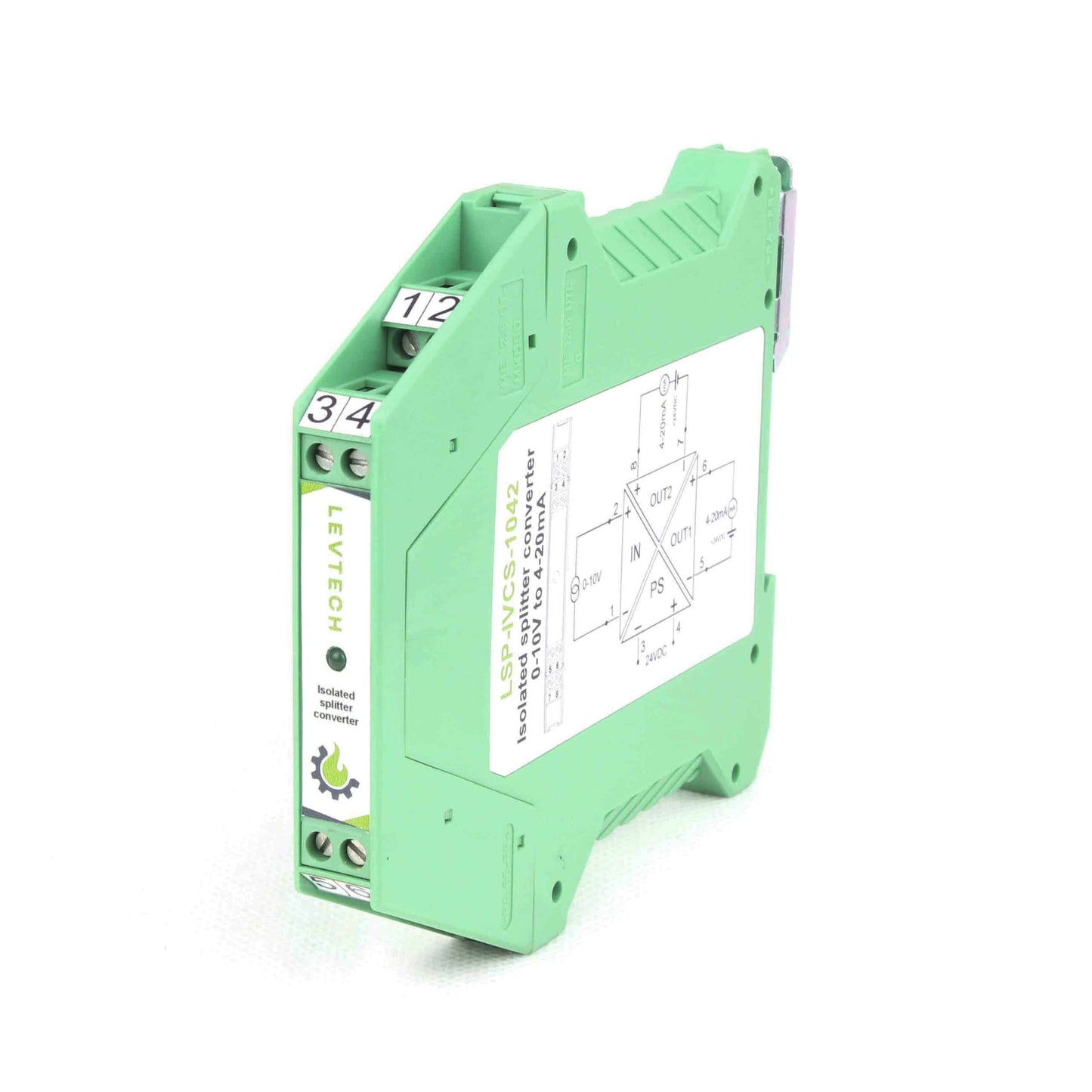

Levtech - LSP-IVCS-1042 The Signal Converter and Splitter converts and splits 4-20mA and 0-10V signals, allowing a transmitter to connect to both a Programmable Logic Controller (PLC) and a display unit. It comes in different models, identified by unique order codes, to suit various requirements. The device features four-way isolation, 3500VDC isolation, TS-35 DIN rail mounting, ±0.1% accuracy, an IP40 case, screw terminals, a power LED, a 24VDC supply voltage, and is factory-calibrated. It is manufactured in the EU for industrial operations.
Technical OverviewOur Signal Converter and Splitter is an integral component in industrial applications, designed to facilitate the conversion and splitting of different signal types. It serves as a bridge between devices, ensuring efficient and effective communication. This robust and versatile tool is designed to meet the diverse needs of industrial settings, offering a practical solution for signal conversion and splitting.
Functionality and UseAs a 4-20mA and 0-10V Signal Splitter, the converter is capable of handling a variety of signal types. It is designed to split and convert a 4-20mA signal from a conductivity transmitter into two identical 0-10V signals. This allows for the simultaneous connection of the transmitter to a Programmable Logic Controller (PCL) and a display unit.
Versatility at Its BestAs a 0-10V Signal Splitter, our converter provides flexibility for various applications. It can handle voltage inputs/outputs ranging from 0-5V and 0-10V, and current inputs/outputs from 0-20mA and 4-20mA. This versatility ensures our converter can adapt to your specific needs.
Easy Installation and High AccuracyOur Isolated Signal Converter is a DIN Rail Signal Converter, designed for easy mounting on a TS-35 DIN rail. It boasts a high accuracy of +/-0.1%, ensuring precise signal conversion for your operations. It also offers superior noise resistance, ensuring clear, uninterrupted signals.
Features- Four-way isolation: This feature ensures that the input, outputs, and power supply are isolated from each other.
- 3500VDC isolation: This high level of isolation further enhances the splitter’s ability to reduce interference.
- TS-35 DIN rail mounting: This feature allows for easy and secure installation.
- +/-0.1% accuracy: This ensures highly accurate data transmission.
- IP40 case: This provides protection against objects larger than 1mm and against vertically falling water drops.
- Screw terminals: These allow for secure electrical connections.
- Power LED: This provides a visual indication of the power status.
- Supply voltage 24VDC: This is the required supply voltage for the splitter.
- Manufactured in the EU: This ensures adherence to high manufacturing standards.
