Product Description

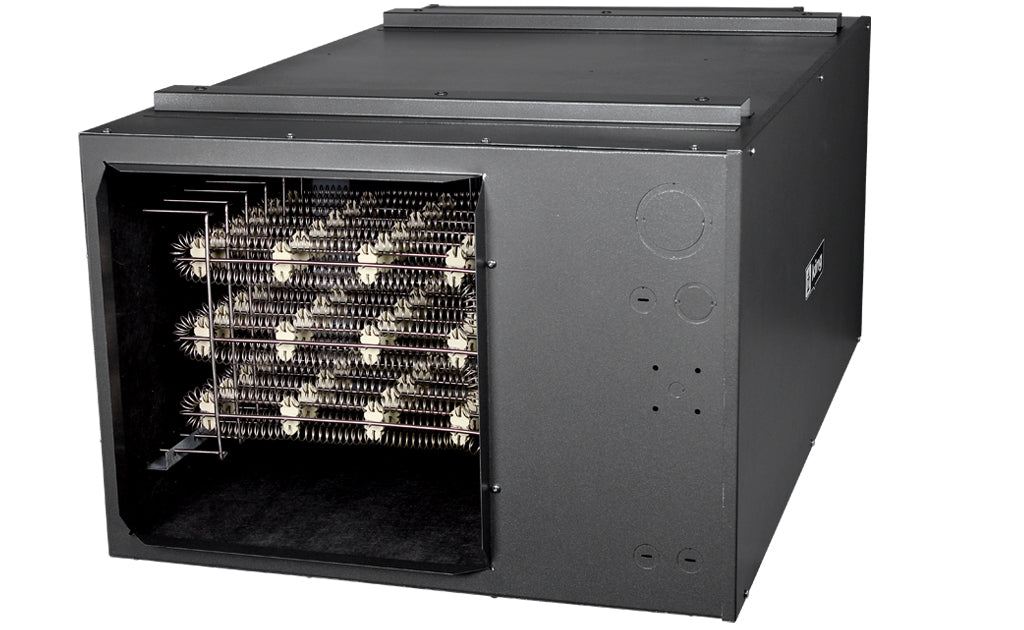

The King MAU Make-Up Air Unit is a plenum rated unit, designed to “make up” the air in your interior space that has been removed due to process exhaust fans. The building ventilation and the make-up air system work together to ensure the building pressure is maintained, while eliminating temperature fluctuations and a number of air quality issues. MAU preheats the incoming fresh air at the lowest cost, thus continuously providing comfortable ventilation throughout the building.
Featuring an energy efficient ECM motor, the MAU combines a fan driven fully modulating electric heating unit with a fresh air relay logic control circuit providing an extremely versatile all-in-one packaged unit.
The MAU is approved for use in concealed areas of buildings such as an area between a finished ceiling and drop ceiling. It is designed to work with HVAC equipment to provide indoor air quality into a return side or supply side of the ductwork system or alternatively directly into the building space.
Features- Packaged, All-In-One Make Up Air Solution
- 700-1770 CFM @ 0.2” Static Pressure
- 3.8kW to 34.5kW Models Available
- Available in 208/240V/480V - Single Three Phase
- Plenum Rated for Concealed Spaces
- Compact Design, Vertical or Horizontal Mounting
- Fully Modulating Electric Heat Using Solid State Relay (SSR) Technology
- Built-In Electronic Proportional Thermostat For Modulating Heat, 0-10V DC or 4-20ma
- Thermostat Can Be Relocated to Be Used as a Wall Mounted Room Thermostat
- 5 Motor Torque Settings for Field CFM and Temperature Rise Adjustment
- Up To Five ECM Fan Speeds Via 24VAC Inputs
- Factory Set Heating and Fan Only Speeds, Field Adjustable
- Energy Efficient ECM motor, 1/3, 1/2HP 3/4HP
- Detailed CFM/Static Pressure/Temperature Rise Tables to Design a Perfect Solution
- Includes Field Installed Remote Duct Sensor For Precise Set Points
- Automatic Damper Control (damper purchased separately)
- Current Transformer Technology For Full Interlock With Exhaust Systems
- Relay Logic Control Circuit Enabling Control of Other Make-Up Air Components (Damper, Exhaust Fans, Outside Thermostat Humidistat, Etc - purchased separately).
- Separate 40VA Control Power Transformer for Auxiliary Devices
- Side Access Panel For Easy Wiring Maintenance
- Includes Lockout Circuit For BMS Compatibility
- Horizontal or Vertical Installation
- Compact Footprint
- 20-Gauge Electro Galvanized Steel Cabinet with Corrosion Resistant Finish
- Includes Filter Housing with 1" Thick Replaceable Air Filter. Compatible with up to 2" Thick Filter (purchased separately)
- Proudly Made in the USA with U.S. Global Materials
- 3-Year Limited Warranty
