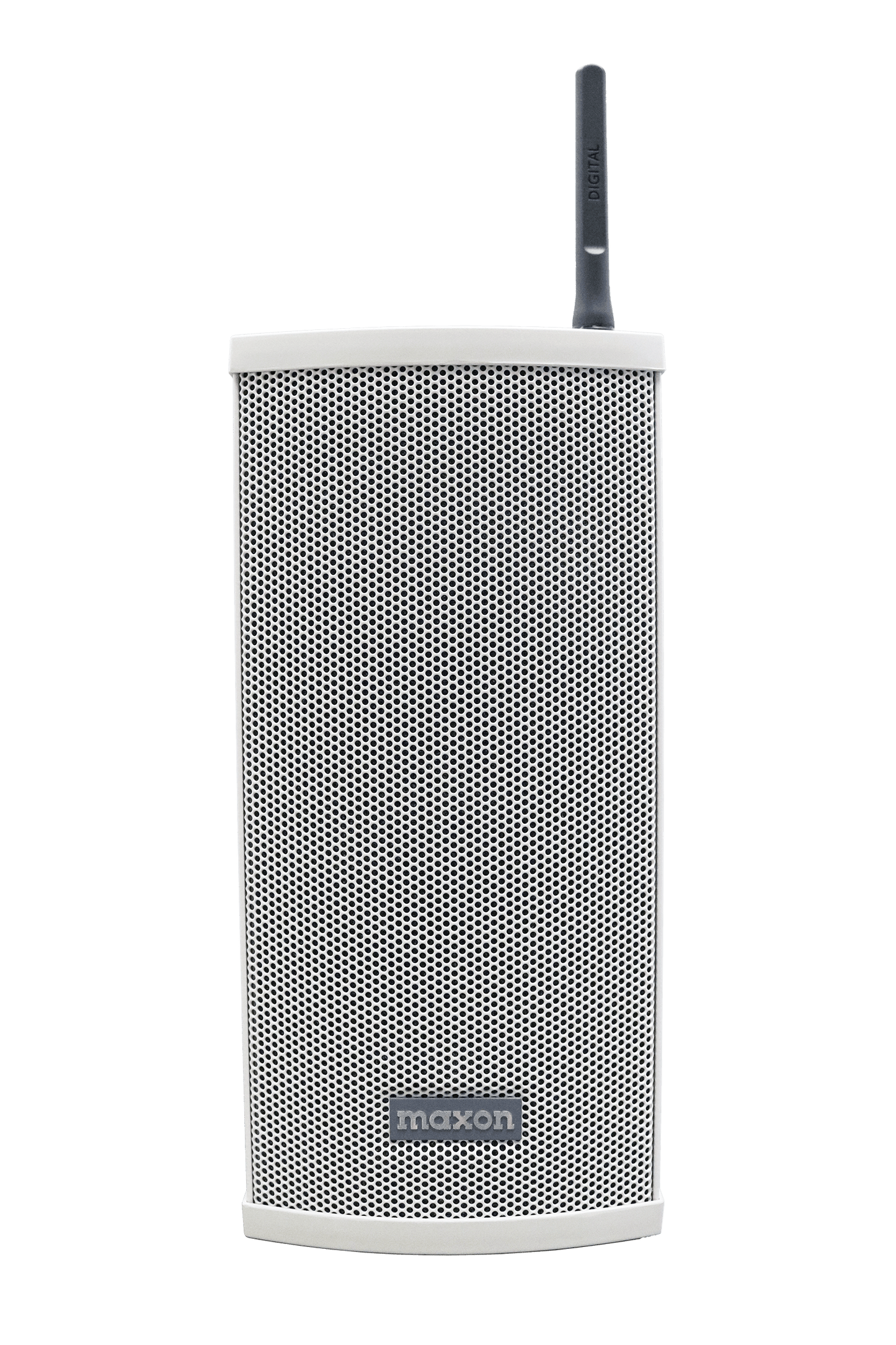

Maxon MDS-1400 (10W) Digital / Analog Wireless Radio Loudspeakers

Product Overview

10 Watt DMR Tier II Digital / Analog Receive-Only Wireless Radio Speaker

Use your portable or mobile UHF two-way radio to make announcements through the speakers

Maxon MDS Series Wireless Radio Speakers

MDS-1400/2400/3400 are wireless, programmable, receive-only radio speakers that can be used with any Analog or DMR Digital (DMR Tier2 TDMA) portable or mobile radio programmed in the UHF band (400-470 MHz) for remote broadcasting & announcements. System will allow a user with a portable radio within range to transmit audio from their radio to one speaker, a select number of speakers, or all speakers within a building/area.

The speaker system consists of the speaker and a Bluetooth USB module for your PC that is used to program the speaker. The MDS Series uses a plug-in power supply that converts the AC voltage to 12VDC to power the speakers. MDS-1400/2400 versions can be either wall-mounted or stood on a book shelf. The MDS-3400 is a circular speaker that is hard mounted into a wall or ceiling.

Use wherever wireless broadcasting or announcement loudspeakers are needed but where it may be hard to install wiring for a PA system: Schools, Factories, Bus/Train Terminals, Shopping Centers, Large Stores, Parking Lots, Golf Courses, Amusement Parks, Warehouse & Distribution Centers, and Public Address Alerting.

The plug and play design means there is no installation of pulling wires through walls thus reducing costs and saving time.

Features:

Works with any DMR Tier II Digital or Analog UHF radio in 400-470 MHz band

Range 2+ miles (Depending on Tx radio power & antenna positioning)

Unlimited # of Speakers & Portable Radios can be used together

Single Channel (stores 512 Channels, 32 Channels per Zone)

Programmable DMR / Analog / Mixed Mode Per Channel

Private Call, Group Call (to use only specific loudspeakers), All Call (All Speakers) with DMR radios

CTCSS/DCS can be used in Analog mode to access specific speakers

Broadcast Radio Alerts from Portable Radios for Emergencies

Program Speaker & Upgrade firmware using Bluetooth Dongle

Rechargeable Backup Battery (5-Hr Broadcasting, 9-Hr Standby)

Remote volume control using MDP-6424 Portable Radio

UHF "rubber duck" antenna supplied w/speaker set-up

Each speaker comes with basic mounting brackets for wall or ceiling installation

Available in three versions:

MDS-1400 : 10W rectangle speaker, w/removable power supply
MDS-2400 : 20W rectangle speaker, w/removable power supply
MDS-3400 : 10W circle speaker, w/o power supply

Specifications:

Audio Output:10W (MDS-1400/3400)
Channel Spacing:12.5 kHz
Power Supply:110V AC @ 12V DC / 1A (MDS-1400/2400)
Operating Temperature: -22‚ ° F to +140‚ ° F,-30‚ ° C to +60‚ ° C

Accessories:

ACC-MDSPC: Bluetooth Programming Dongle for MDS Speakers
ACC-MDSSW: Windows Programming Software 12.5 kHz Only
ACC-MDSPS: 110V AC @ 12V DC 1 Amp Power Supply for MDS-1400 or MDS-2400
PS-340012V: 110V AC Power Supply with Wall Plug for MDS-3400
