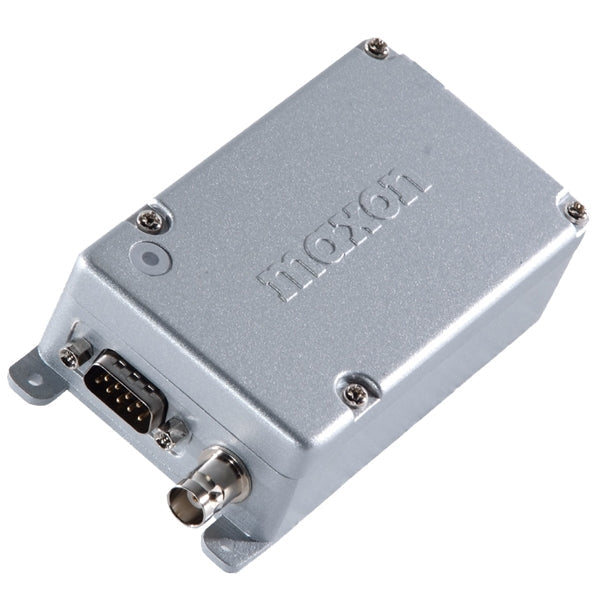

Maxon SD-125EL V2 VHF Data Radio

Product Overview

VHF Data Radio, 148-174 MHz, 5 / 1 W, 16 Channels (Dip-Switch), Time-Out-Timer, 9-18V DC Operating Voltage, DE-9 Pin Male Connector, LED Status Indicator

BNC-Female antenna connector, POCSAG capable, PC programmable

Radio only, additional accessories sold separately

Maxon SD-125EL V2 VHF Data Radio

The Maxon (TecNet) SD-125EL Series of data/telemetry radios are designed to meet the needs for a variety of wireless applications in a cost effective package.

The modules incorporate the most requested mechanical footprint and connectors. Adjustable transmit power settings from one to five watts provides the power needed on any job and the LED indicator gives instant on-sight status of the radios operation. The die cast aluminum cabinet/lid provides resistance to RF interference; and gives exceptional environmental durability in the most extreme conditions. The SD-125EL can also be configured with POCSAG for paging applications.

Whether implementing a new system or installing into an existing system, the Maxon America family of data telemetry radios have been the choice of OEM and end-users worldwide for over 25 years.

Available as:

SD-125EL V2: 148-174 MHz VHF data radio
SD-125EL U1: 400-430 MHz UHF data radio
SD-125EL U2: 440-470 MHz UHF data radio

Features:

LED status indicator (SD-125EL only)

5 / 1 Watt power output

VHF (148-174 MHz), UHF (400-430 MHz), UHF (440-470 MHz)

16 channels (Dip Switch Select)

DE-9 male connector

12.5 / 25 kHz channel spacing

TX Time-Out-Timer

Carrier detect

Busy channel lockout

BNC female antenna connector

POCSAG capable

PC programmable

FCC / IC Type accepted

Featured Applications:

Water/Waste Treatment Plants, Oil and Gas Field, SCADA Security/Alarm System, Gate Systems, Remote Controls, Commercial Sign Control, Automatic Vehicle Location, Murphy/Kill Switches, Weather Monitoring, Irrigation Systems, Emergency Call Boxes, Low Power Repeater.

Accessories:

ANTENNAS
TB-150BN ƒ ¢¢š ¬¢‚¬Å“ VHF (148-174 MHz) 6ƒ ¢¢š ¬‚ ³ Antenna, BNC
TB-450BN ƒ ¢¢š ¬¢‚¬Å“ UHF (400-512 MHz) 6ƒ ¢¢š ¬‚ ³ Uncut Antenna, BNC
G8BI ƒ ¢¢š ¬¢‚¬Å“ Mag Mount Base, 12ƒ ¢¢š ¬‚ ² coax, BNC Connector; Requires QW152 or QW450
G8BI20 ƒ ¢¢š ¬¢‚¬Å“ Mag Mount Base, 20ƒ ¢¢š ¬‚ ² coax, BNC Connector; Requires QW152 or QW450 QW152 ƒ ¢¢š ¬¢‚¬Å“ 18ƒ ¢¢š ¬‚ ³ VHF Wave
Antenna (NMO Type): Use with G8BI or G8BI20
QW450 ƒ ¢¢š ¬¢‚¬Å“ 6ƒ ¢¢š ¬‚ ³ UHF Wave Antenna (NMO Type): Use with G8BI or G8BI20

HEAT SINK

ACC-HSNF ƒ ¢¢š ¬¢‚¬Å“ Aluminum Black Anodized Pin Style ƒ ¢¢š ¬¢‚¬Å“ Flat Mount

PROGRAMMING

ACC-900E/N ƒ ¢¢š ¬¢‚¬Å“ Programming Software
ACC-2125 ƒ ¢¢š ¬¢‚¬Å“ Programming Cable (Serial)
TAC-101D ƒ ¢¢š ¬¢‚¬Å“ Squelch Control Cable
