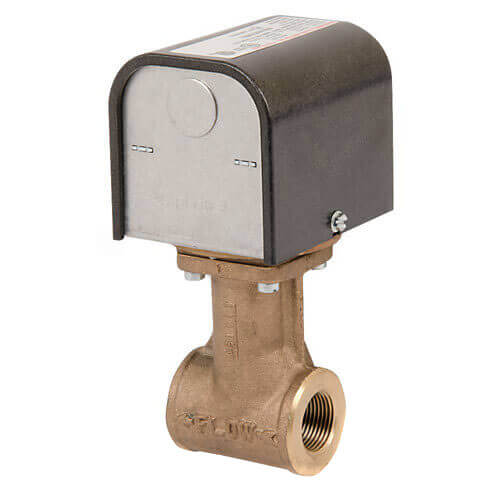

McDonnell 115200 Flow Switch 1 Npt

Product Overview

For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others

• In-line configuration eliminates need for a pipe tee
• Sizes available:3/4" NPT, 1" NPT
• Paddles available for low, medium or high flow
• Two electrical knock-outs allows connection from either end
• Sensitivity adjusting screw makes flow adjustment easy
• Single pole, double throw snap switch
• Hardened stainless steel bearings minimize friction
• Sealed Monel bellows
• Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg. C)
• Maximum temperature 300 Deg. F (149 Deg. C)
• Maximum pressure 160 psi (11.3 kg/cm2)
