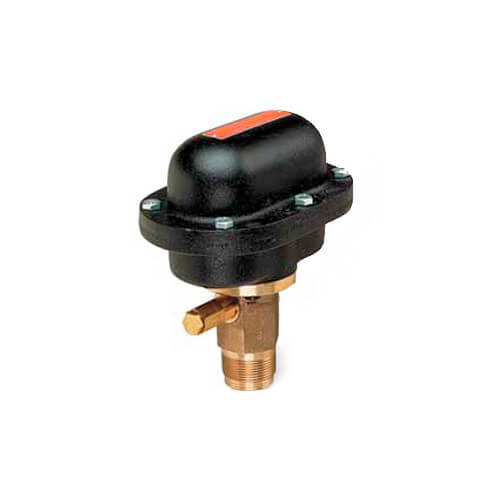

McDonnell 120175 Flow Switch 1-1/4 Npt

McDonnell 120175 Flow Switch 1-1/4 Npt

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU kpi116-120175

$1,067.50 USD
$1,067.50 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Flow Switches
manufacturer: McDonnell & Miller
mpn: 120175
weight: 11.7

Product Description

McDonnell & Miller - 120175 For hazardous environment applications requiring a NEMA 7 (Class I, Group C or D) or NEMA 9 Class II, Group E, F, or G) rated flow switch

Features
  • 1-1/4" NPT
  • Brass with sealed tube construction
  • Single pole, double throw snap switch
  • Magnetic switching mechanism
  • Sensitivity adjusting screw makes flow adjustment easy
  • Paddles can be trimmed to suit application needs
  • Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg C)
  • Maximum temperature 300 Deg. F (149 Deg. C)
  • Maximum operating pressure 300 psi (21 kg/cm2)
  • 1000 psi (70 kg/cm2) - Stainless Steel models
Optional Features
  • Extended paddle arm
  • Stainless steel body and paddles
  • BSPT threads

Additional Information

Max Pressure (PSI)300
Size1-1/4"
ApplicationLiquid Flow
TypeIndustrial
Amperage7.43.7
Voltage120v240v
SwitchSPDT
Hertz6050
Temperature Range (F)32°F - 225°F
