Product Description

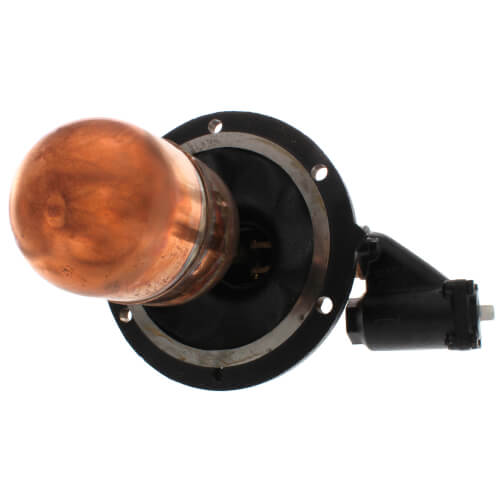

McDonnell & Miller - 126600
Features- For boiler receiver tanks
- Direct mounting eliminates need for equalizing connections
- Proportional feed action
- Mounting Flange - six 17/32" (13.5mm) bolt holes on a 8 1/2" (216mm) bolt circle
- Soft seat provides positive seal
- Maximum water supply pressure 150 psi (10.5 kg/cm2)
- Maximum inlet water temperature 120¦F (49¦C)
- Maximum vessel pressure 35 psi (2.5 kg/cm2)
Additional Information
ApplicationBoiler Receiver Tanks
TypeMake-Up
Max Pressure (PSI)150
Max Vessel Pressure35 psi
Max Inlet Water Temp (F)120°F
Width (Inches)17.4375"
Height13.1875"
Mount8-1/2" Bolt Circle
Bolt Hole Size17/32"
Size3/4"
Connection TypeThreaded
