category:
Water Feeders
manufacturer:
McDonnell & Miller
mpn:
133700
weight:
22.0
Product Description

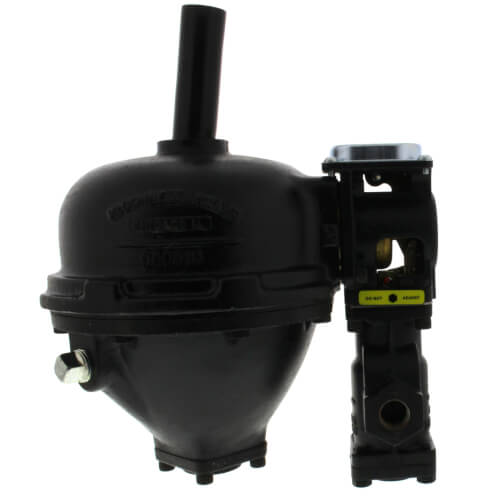

McDonnell & Miller - 133700 Series 247/247-2 Mechanical Water Feeders/Low Water Cut-Offs
features- For steam and hot water boilers with cold water feed
- Continuous maintenance of minimum safe water level, independent of electrical service
- Proportional feed action
- Quick-change replaceable cartridge valve and strainer
- Quiet, durable operation
- Isolated feed valve minimizes lime and scale build-up
- Optional features v No. 2 switch v Manual reset
- Model 247 can be field upgraded with a No. 2 switch to add low water cut-off function
- Maximum water supply pressure 150 psi (10.5 kg/cm2)
- Maximum inlet water temperature 120¦F (49¦C)
- Maximum vessel pressure 30 psi (2.1 kg/cm2)
Additional Information
ApplicationHot Water BoilersSteam Boilers
TypeFloat-Style
Max Pressure (PSI)150
Max Vessel Pressure30 psi
Reset TypeAutomatic
Max Inlet Water Temp (F)120°F
Height9.125"
Width (Inches)7-5/16"
Size1/2"
Connection TypeThreaded
Electrical Ratings (AFL)5.1 A @ 240 VAC10.2 A @ 120 VAC
Electrical Ratings (ALR)61.2 @ 120 Vac30.6 @ 240 VAC
Pilot Duty Rating125 VA
