category:
Water Feeders
manufacturer:
McDonnell & Miller
mpn:
135600
weight:
36.5
Product Description

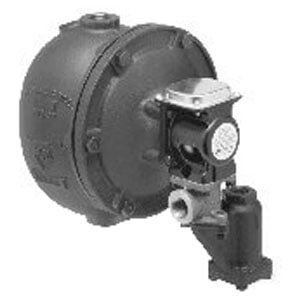

McDonnell & Miller - 135600
Features- For high capacity [up to 35,000 sq. ft. (3250m2)] low pressure steam and hot water boilers with cold water feed
- Proportional feed action
- Maximum water supply pressure 100 psi (7 kg/cm2)
- Maximum inlet water temperature 120°F (49°C)
- Maximum vessel pressure 35 psi (2.5 kg/cm2)
Additional Information
ApplicationHot Water BoilersSteam Boilers
TypeFloat-Style
Max Pressure100 psi
Max Vessel Pressure35 psi
Reset TypeAutomatic
Max Inlet Water Temp (F)120°F
Width (Inches)9"
Height10.375"
Electrical Ratings (AFL)10.2 A @ 120 VAC5.1 A @ 240 VAC
Electrical Ratings (ALR)30.6 @ 240 VAC61.2 @ 120 Vac
Pilot Duty Rating125 VA
Size1"
Connection TypeThreaded
