category:
Low Water Cutoffs
manufacturer:
McDonnell & Miller
mpn:
144696
subcategory:
Water
type:
Low Voltage Low Water Cutoffs
weight:
1.5

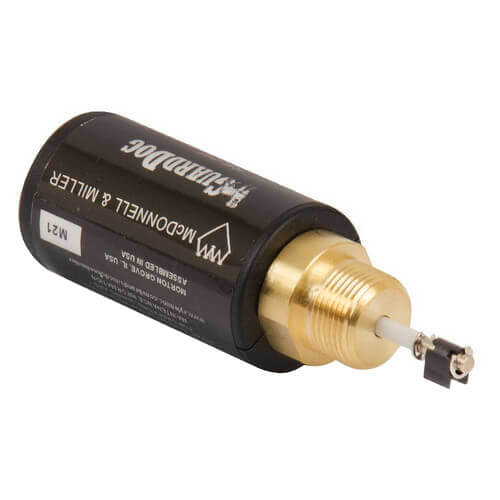

Product Overview
Specifications- Test button to quickly confirm proper operation
- Universal wiring harness fits 100% of today's gas boilers
- Brass threads enable a secure and trouble-free installation
- -S, -A and -L models provide "plug play" installation with most residential boilers
- Compact size
- Easy to install and wire
- Automatic reset feature resumes operations after a power
- outage when water is on probe
- Green LED indicating power on
- Red LED indicating low water condition
- Solid state operation
- 15,000 ohms probe sensitivity
- Maximum ambient temperature 120 Deg. F (49 Deg. C)
- Maximum water temperature 250 Deg. F (121 Deg. C)
- Maximum water pressure of 50 psi (3.5 kg/cm3)
Additional Information
ApplicationHot Water Boilers
TypeElectronic
Reset TypeAutomatic
Max Pressure (PSI)160
Featuresw/ Vent Damper Harness
Max Temp (F)250°F
Sensitivity15000 ohms
Voltage24v
Length5-3/4"
Max Ambient Temp (°F)120°F
Width1-7/8"
Connection TypeThreaded
Thread Size3/4"
VA Rating2.5
