category:
Low Water Cutoffs
manufacturer:
McDonnell & Miller
mpn:
149400
subcategory:
Steam
type:
Line Voltage Low Water Cutoffs
weight:
10.0

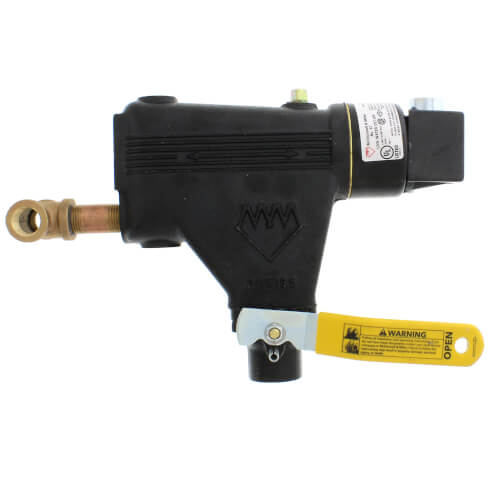

Product Overview
Features:- For residential and commercial applications
- For boilers of any steaming capacity
- Quick hook-up fittings provided
- Lever-operated, full port ball valve for easy blow down
- Adjustable BX outlet for easy installation
- Dual precision switches for dependable operation of the low water cut-off and alarm or electric water feeder
- Large float chamber
- Maximum steam pressure 20 psi (1.4 kg/cm2)
- Low voltage switches for self-generating millivolt circuits
- Manual reset switch
Additional Information
ApplicationSteam Boilers
SwitchDual Precision Switches
Max Pressure (PSI)20 (Steam)
TypeFloat-Style
Reset TypeAutomatic
FeaturesQuick Hook-Up Fittings
Connection TypeThreaded
Electrical Ratings (AFL)3.7 A @ 120 VAC7.4 A @ 120 Vac
Electrical Ratings (ALR)22.2 A @ 240 VAC44.4 A @ 120 Vac
Pilot Duty Rating125 VA
Thread Size3/4"
