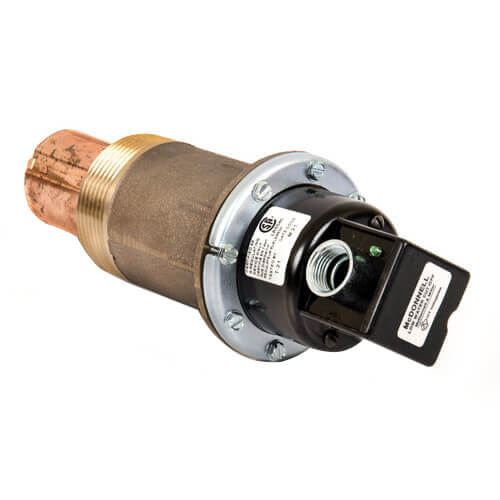

Product Overview
For residential and commercial low pressure steam boiler applications
Specifications- For boilers of any steaming capacity
- For mounting in 21/2" NPT boiler side tappings
- Insertion lengths available in 13/16 - 41/8" (30-105mm)
- Packless bellows
- Adjustable BX outlet for easy installation
- Dual precision switches for dependable operation of the low water cut-off and an alarm or electric water feeder
- Maximum steam pressure 20 psi (1.4 kg/cm2)
Additional Information
ApplicationSteam Boilers
SwitchMillivolt
Max Pressure (PSI)20 (Steam)
TypeFloat-Style
Insertion Length1-3/4"
Reset TypeAutomatic
Mounton 2-1/2" NPT Boiler Side Tappings
Electrical Ratings (ALR)22.2 A @ 240 VAC44.4 A @ 120 Vac
Electrical Ratings (AFL)7.4 A @ 120 Vac3.7 A @ 240 VAC
Pilot Duty Rating125 VA
