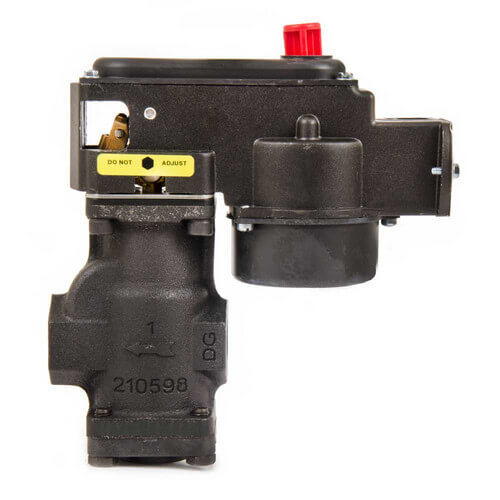

McDonnell 169400 Water Feeder

McDonnell 169400 Water Feeder

Back Order

Get it by Fri, May 23 - Wed, May 28

SKU kpi116-169400

0
(0 rating)
$612.00 USD
$612.00 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Water Feeders
manufacturer: McDonnell & Miller
mpn: 169400
weight: 5.5

Product Description

McDonnell & Miller - 169400

Overview:
  • For low pressure steam boilers with cold water feed
  • Eliminates necessity to manually add water to the boiler
  • Can be used with mechanical or electronic low water cut-off controls
  • Quick-change replaceable cartridge valve and strainer
  • Manual feed button
  • Model 101-A features a 120 VAC solenoid
  • Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
  • Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
  • Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
  • Maximum inlet water temperature 120 degrees F (49 degrees C)
  • Maximum power consumption: 40 VA at 24 VAC, 40 VA at 120 VAC

Additional Information

ApplicationSteam Boilers
TypeElectronic
Max Pressure (PSI)150
Max Vessel Pressure25 psi
Reset TypeAutomatic
Max Inlet Water Temp (F)120°F
Voltage120v
Height7.5625"
Width (Inches)6-7/8"
Feed Rate1
Max Ambient Temp (°F)100°F
Max Power Consumption40 VA
Connection TypeThreaded
Size1/2"
