category:
Water Feeders
manufacturer:
McDonnell & Miller
mpn:
169500
weight:
9.3
Product Description

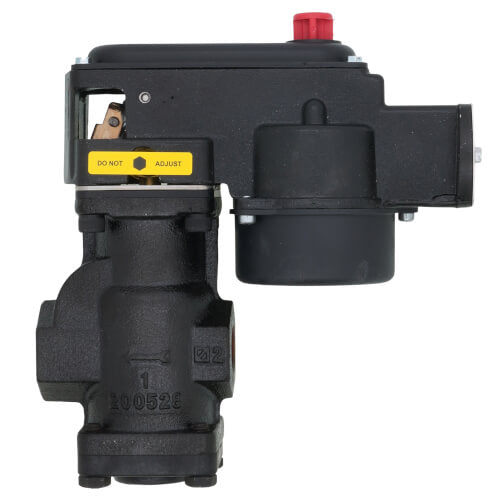

McDonnell & Miller - 169500 Series 101-A Electric Water Feeders
Features- For low pressure steam boilers with cold water feed
- Eliminates necessity to manually add water to the boiler
- Can be used with mechanical or electronic low water cut-off controls
- Quick-change replaceable cartridge valve and strainer
- Manual feed button
- Model 101-A features a 120 VAC solenoid
- Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
- Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
- Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
- Maximum inlet water temperature 120 degrees F (49 degrees C)
- Maximum power consumption - 40 VA at 24 VAC - 40 VA at 120 VAC
Additional Information
ApplicationSteam Boilers
TypeElectronic
Max Pressure (PSI)150
Max Vessel Pressure25 psi
Voltage24v
Reset TypeAutomatic
Width (Inches)6-7/8"
Height7.5625"
Feed Rate1
Max Ambient Temp (°F)100°F
Max Inlet Water Temp (F)120°F
Max Power Consumption40 VA
Connection TypeThreaded
Size1/2"
