category:
Water Feeders
manufacturer:
McDonnell & Miller
mpn:
169560
weight:
3.0
Product Overview

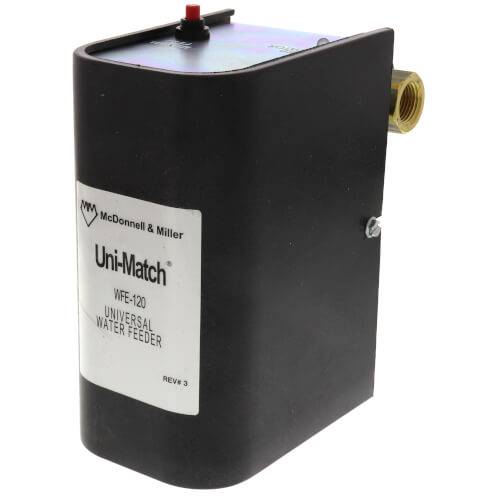

McDonnell Miller Universal Water Feeders are ideal for use in residential or small commercial applications. Versatile and compact, they are easily installed to operate with either a probe- or float-type low water cut-off. The feeders are always ready to add water when given the signal from the LWCO - no need to manually add water. And they protect the boiler from a dry fire condition by maintaining a safe minimum water level in the boiler should a system leak occur. They monitor the water level, maintaining a safe minimum and allow the boiler water line to rise and fall naturally through its normal operating range.
Features- Multi-color LED
- Four position on/off dip switch
- Water supply pressures to 150 psi; boiler pressures to 15 psi
- 3/8" NPT connection
Additional Information
ApplicationSteam Boilers
TypeFloat-StyleElectronic
Max Pressure (PSI)150
Max Vessel Pressure15 psi
Voltage120v
Connection TypeThreaded
Size3/8"
Max Inlet Water Temp (F)120°F
Max Ambient Temp (°F)100°F
Height6.25"
Width (Inches)2-7/8"
Power Consumption15 VA
Feed Rate4
