category:
Low Water Cutoffs
manufacturer:
McDonnell & Miller
mpn:
173502
subcategory:
Steam
type:
Line Voltage Low Water Cutoffs
weight:
39.7

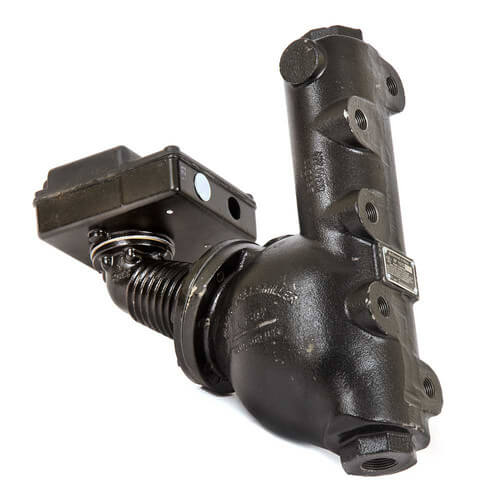

Product Overview
For residential, commercial and industrial low or high pressure boiler applications
Specifications- For boilers of any steaming capacity
- Monel bellows provides corrosion resistance
- Float chamber with integral water column provided
- Snap action for high temperature service
- 1 Single pole, single throw switch for pump control
- 1 Single pole, double throw switch for low water cut-off and alarm actuation
- Maximum pressure 150 psi (10.5 kg/cm2)
Additional Information
ApplicationSteam Boilers
SwitchSPSTSPDT
Max Pressure150 psi
TypeFloat-StyleCombo
Featuresw/ Water ColumnSnap Switch
Reset TypeAutomatic
Electrical Ratings (ALR)44.4 A @ 120 Vac22.2 A @ 240 VAC
Electrical Ratings (AFL)3.7 A @ 120 VAC7.4 A @ 120 Vac
Pilot Duty Rating345 VA
Connection TypeThreaded
Thread Size1"
