McDonnell & Miller

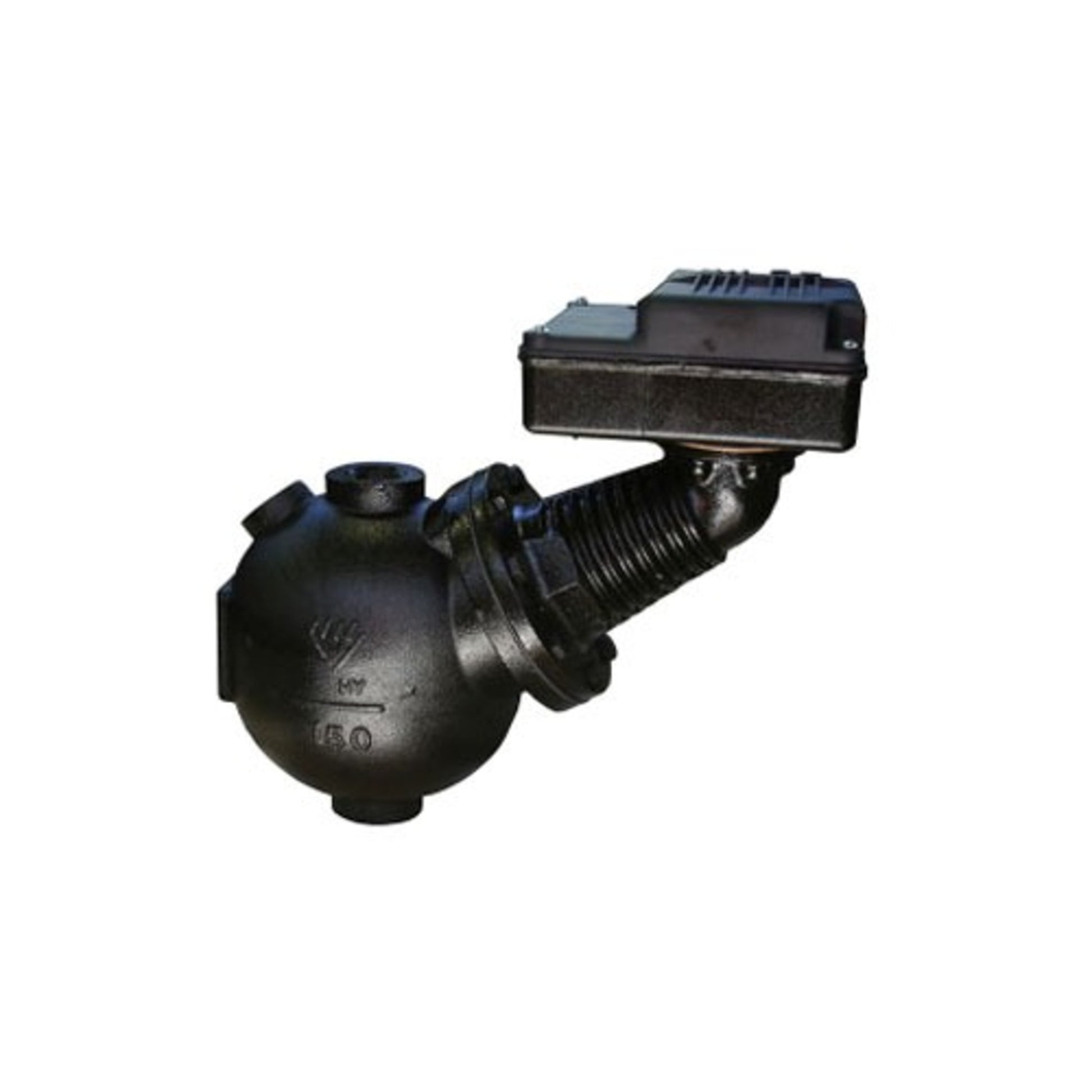

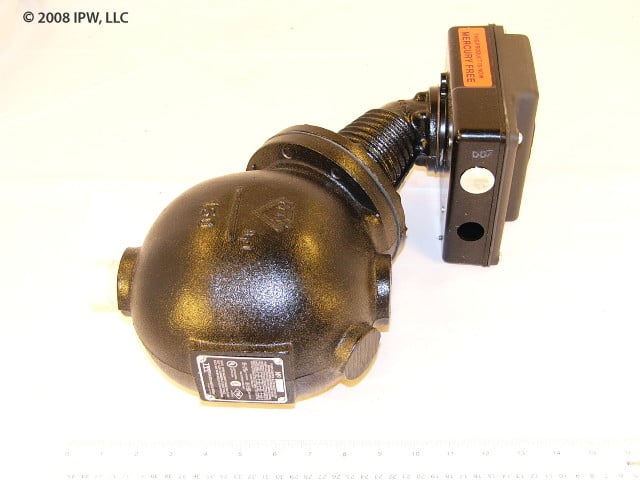

McDonnell 178802 Hi Pressure Level Control

McDonnell 178802 Hi Pressure Level Control

Dropship

SKU kpi116-178802

$1,095.50 USD
$1,095.50 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Low Water Cutoffs
manufacturer: McDonnell & Miller
mpn: 178802
subcategory: Steam
type: Line Voltage Low Water Cutoffs
weight: 26.0

Product Overview

Features
  • For commercial and industrial low or high pressure boiler applications
  • For boilers of any steaming capacity
  • Monel bellows provides corrosion resistance
  • Snap action switches for high temperature service
    • - 1 Single pole, single throw switch for pump control - 1 Single pole, double throw switch for low water cut-off and alarm actuation
  • Optional features
    • - Manual reset - 2 Single pole, single throw switches - 2 Single pole, double throw switches - Float block - BSPT threads
  • Maximum pressure 150 psi (10.5 kg/cm2)

    • Additional Information

    ApplicationSteam Boilers
    Switch2 SPST
    Max Pressure150 psi
    TypeFloat-StyleCombo
    Reset TypeAutomatic
    FeaturesSnap Switch
    Electrical Ratings (AFL)3.7 A @ 120 VAC7.4 A @ 120 Vac
    Electrical Ratings (ALR)44.4 A @ 120 Vac22.2 A @ 240 VAC
    Pilot Duty Rating345 VA
    Depth (Inches)13-1/4"
    Width (Inches)6"
    Length12-7/16"
    Connection TypeThreaded
    Thread Size1"
