category:
Low Water Cutoffs
manufacturer:
McDonnell & Miller
mpn:
317350
subcategory:
Water
type:
Line Voltage Low Water Cutoffs
weight:
2.7

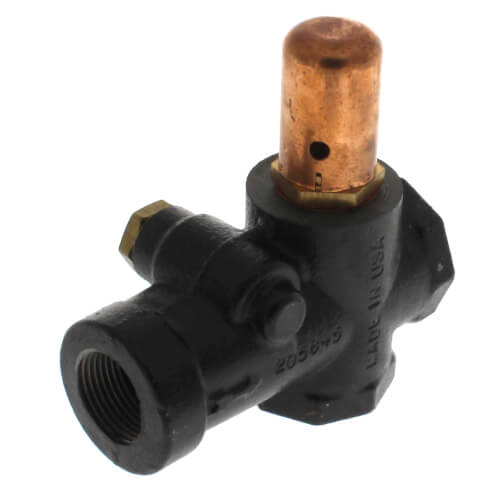

Product Overview
For isolation of equalizing lines during low water cut-off testing
Features- For use on hot water boilers
- Simplifies ASME CSD-1A. code mandated testing of low water cut-offs by eliminating the need to drain the system
- Restricts water flow when the low water cut-off’s blow down valve is open
- Adjustable built-in vacuum breaker in upper valve provides rapid evacuation of water from the float chamber
- 1" NPT connection
- Maximum temperature 250°F (121°C)
- Maximum pressure 160 psi (11 kg/cm2)
Additional Information
Max Pressure (PSI)160
Max Temp (F)250°F
Connection Size1" NPT
