category:
Electric Motors
height:
4
length:
5.75
manufacturer:
Century
mpn:
5R023
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.2
width:
6.5
Product Overview

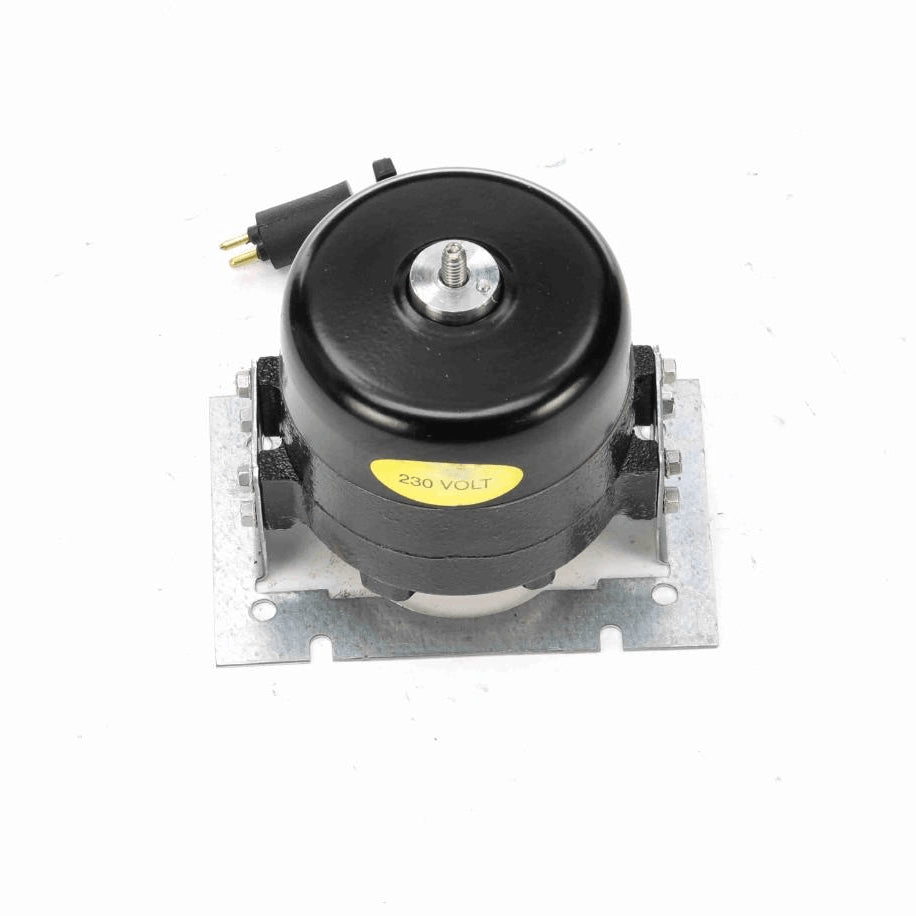

- ARKTIC SSC - Refrigeration Motor
- Unit Bearing
- Electronically Commutated (ECM)
- Electronically Protected
- Totally Enclosed Air Over
- Class B Insulation
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 15" Leads with Molded Plug
- Mounting Bracket
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current0.45 A
Ambient Temperature55 °C
ULYes
Insulation ClassB
CSAY
Weight4.20 LB
Country Of originMexico
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles4
RotationCounterclockwise Opposite Shaft End
MountingBracket
Motor OrientationAny
Frame MaterialCast Iron
Shaft Type1/4-20 THREAD
Frame Length4.26 in
Shaft Diameter0.250 in
Shaft Extension0.33 in
Output Watts38 W
CEN
Starting MethodAcross The Line
