category:
Heating & Air Conditioning System Component
manufacturer:
MRCOOL
mpn:
CASSETTE12HP-230
series:
Mrcool Olympus
subcategory:
Air Handler
weight:
35
Product Overview

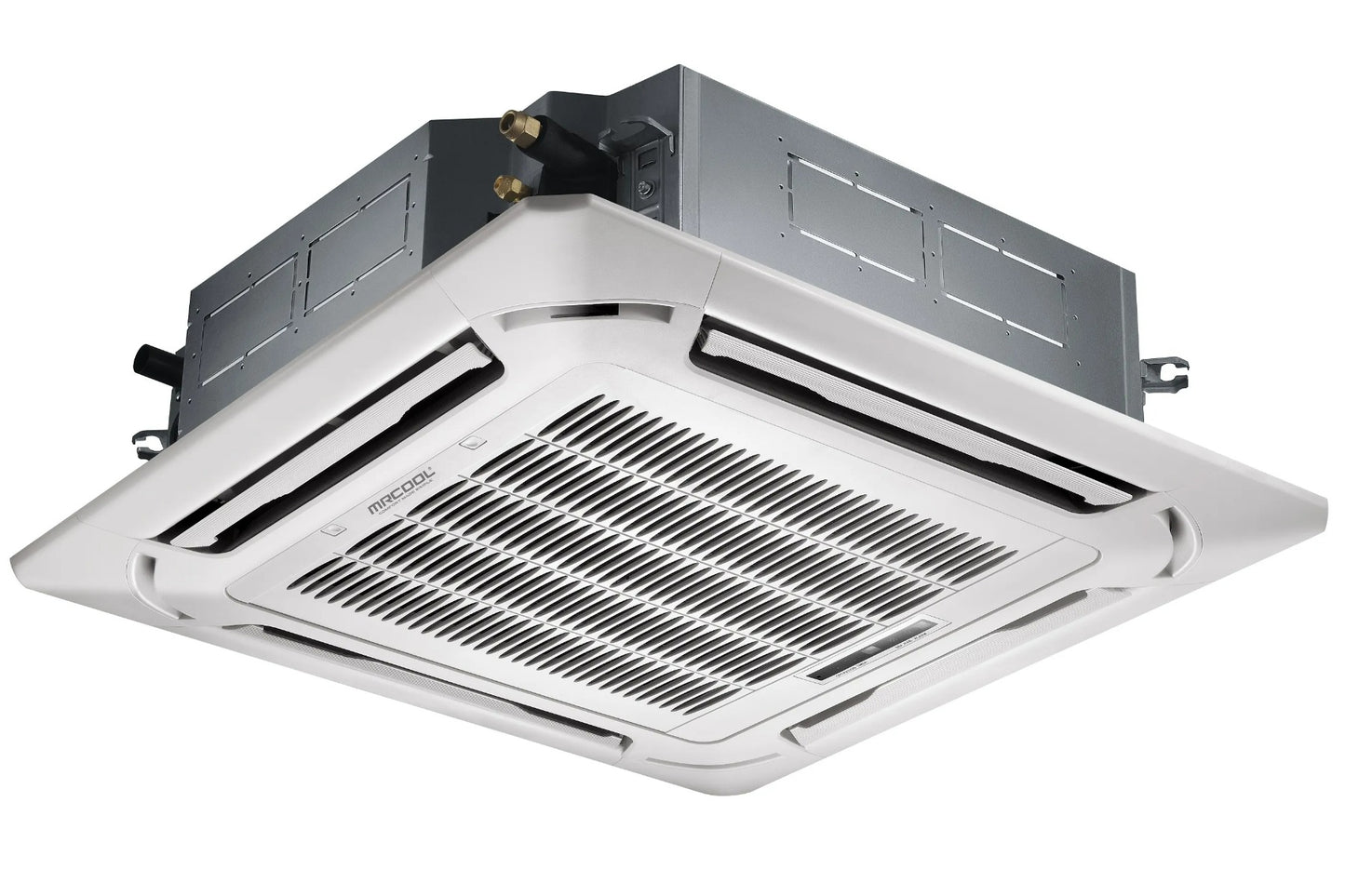

MRCOOL's cassette air handler provides up to 12000 BTU, efficiently heating and cooling your home alongside the Olympus heat pump condenser. The Mrcool Olympus is The whole house mini-split solution.This 1 ton 12,000 BTU ceiling cassette air handler can be matched with any Olympus condenser to condition rooms that are approximately 500 sqft
- Downflow air direction.
- Variable speed.
- 1 ton cooling capacity.
- Flared line set connection.
- 5 year parts warranty.
- Power supply: 208-230 volts/60 Hz, 1-Phase.
- Minimum circuit: 1.3 amps; maximum fuse: 15 amps.
- Piping size liquidside/gasside: 1/4-in to 1/2 inch.
- Energy Star, ETL Listed, AHRI Certified.
Additional Information
Dimensions 22.44 in L x 22.44 in W x 10.24 in H
CertificateEnergy Star, ETL Listed, Prop65
ConfigurationCassette
Cooling Capacity12000 BTU/H
Electrical Phase1 Ph
Fan SpeedsVariable Speed
Heating Capacity12000 BTU/H
Inner Package1
Maximum Amperage15 Amp
Maximum Voltage230V
Power Supply230/208V, 1Ph, 60Hz
Refrigerant Pipe Connection MethodFlare
Suction Line44958
Warranty5 Yr
Weight41.88 lb
