capacity:
18000 BTU (1.5 Ton)
category:
Combo Sets
manufacturer:
MRCOOL
mpn:
DIY-18-HP-WM-230C25
product_color:
White
seer:
22
series:
DIY 4th Gen E STAR
subcategory:
DIY 4th Gen. Ductless AC Unit
voltage:
240 V
weight:
150.36
Product Overview
The included pre-charged 25-foot Quick Connect line set not only makes installation easy, but also safe and cost-saving. The line set is precharged with R-410A refrigerant, a more environmentally friendly and chlorine-free option. Since it is precharged, there is no need for vacuuming. Also included is the DIYPRO cable. With this cable, an electrical conduit is no longer necessary during installation. The DIYPRO cable ensures durability and mechanical protection from animals, yardwork tools, and weather, so you can enjoy the 4th Generation MrCool DIY 18k BTU 22 SEER Ductless Heat Pump Mini Split System for a long time.
You have ultimate control of the 4th Generation MrCool DIY 18k BTU 22 SEER Ductless Heat Pump Mini Split System.You can utilize the included remote, the SmartHVAC app on your Apple or Android device, or you can go completely hands free by using your Amazon Alexa or Google Assistant.

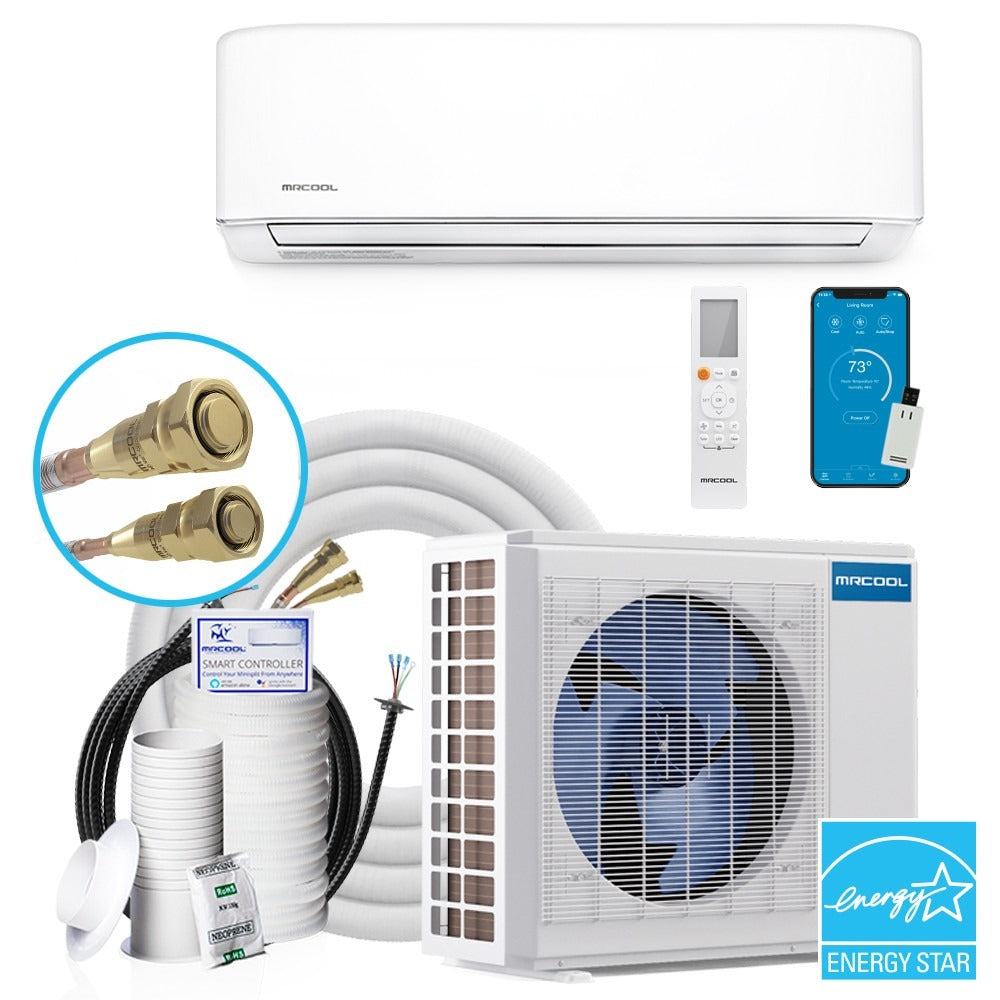

This Bundle Includes:-
18k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 4th Generation - with 25 ft Line Set
18k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v
Additional Information
Heat Pump Condensor Specification
DIY-18-HP-C-230C25
Model DIY-18-HP-C-230C25
AHRI Number 207339188
UPC 810063868505
Avg Coverage Area 750 - 900 Sq Ft
Compressor Inverter
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 11.5
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 30 amps
Primary Heating Capacity 15,001 - 20,000 BTU
Product Height (in) 26.5
Product Length (in) 13.46
Product Width (in) 35.04
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Weight (lbs) 94.36
Additional Information
Wall Mount Air Handler Specification
DIY-18-HP-WMAH-230C25
Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 13.19
Product Length (in) 8.9
Product Width (in) 42.52
Refrigerant R-410a
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 56
