capacity:
18000 BTU (1.50 Ton)
category:
Combo Sets
manufacturer:
MRCOOL
mpn:
DIY-MULTI2-18HP230C
seer:
21 Seer
subcategory:
DIY 4th Gen. Ductless AC Unit
weight:
160
Product Description

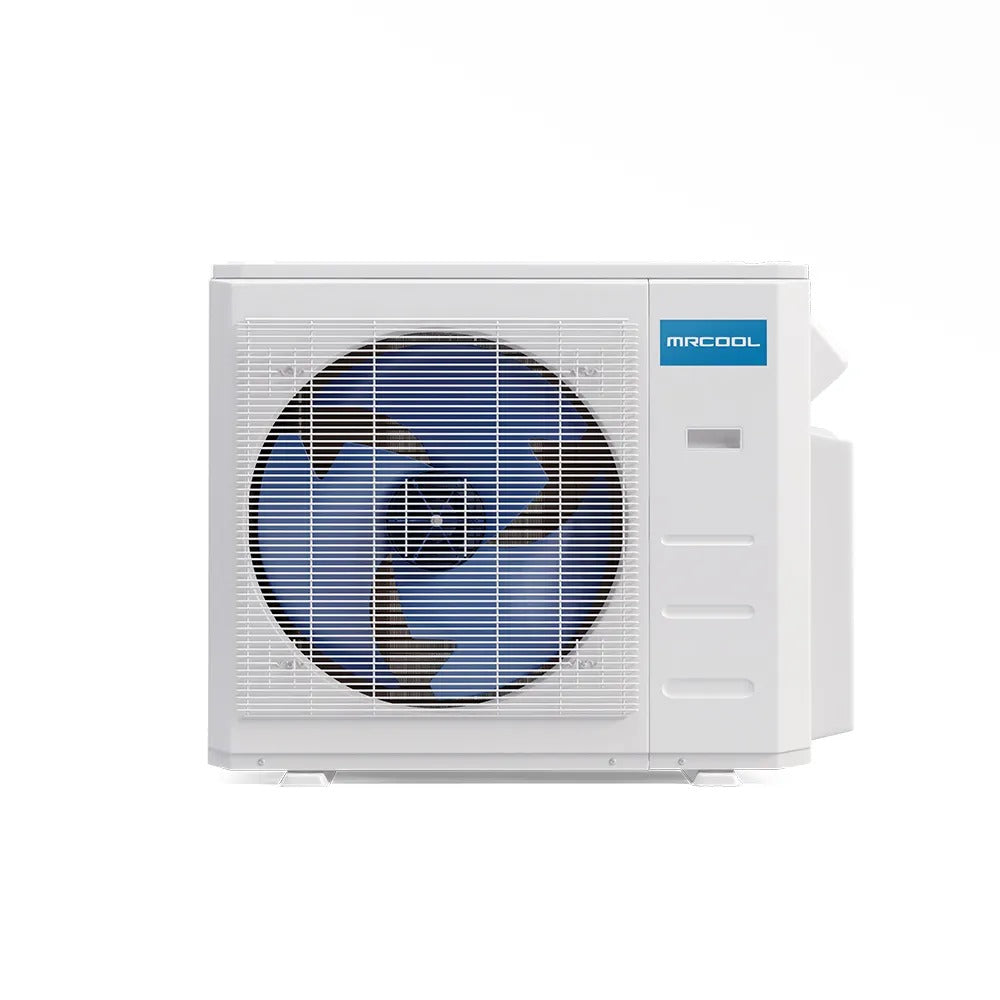

MRCOOL - DIY-MULTI2-18HP230C
MRCOOL offers the DIY-MULTI2-18HP230 condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL™s DIY-MULTI2-18HP230.
MRCOOL offers the DIY-09-HP-WMAH-230C25 wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL™s DIY-09-HP-WMAH-230C25.
Features:
- 18,000 BTU multi zone DIY heat pump condenser
- Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
- 100% sealed and pre-charged system when installed with the right accessories
- Provides efficient heating down to -4 °F
- Provides efficient cooling down to 5 °F
- Energy Star certified
Additional Information
SKUDIY-MULTI2-18HP230C
Mini-Split TypeWall Mounted
Brand/ManufacturerMRCOOL
Zone CompatibilityMulti Zone
AHRI Certificate Number207339196
Outdoor Condensor Weight (in lbs)101 lbs
WM Air Handler Weight (in lbs)23.8
Outdoor Condensor Cooling BTU18000 BTU
WM Air Handler Cooling BTU9,000 BTU
Outdoor Condensor Heating BTU19000 BTU
WM Air Handler Heating BTU9,000 BTU
Outdoor Condensor Decibel Level (dBA)59
WM Air Handler Decibel Level (dBA)25-40
Outdoor Condensor RefrigerantR410A
WM Air Handler RefrigerantR410A
Outdoor Condensor SEER2 (Efficiency)21.2
WM Air Handler SEER1 (Efficiency)22
Outdoor Condensor Electrical230 V. 1 Phase 60 Hz
WM Air Handler Electrical208/230 V. 1 Phase 60 Hz
Outdoor Condensor Max Breaker Size25
WM Air Handler Max Breaker Size15
WM Air Handler Min. Breaker Size3
Outdoor Condensor Min. Breaker Size18
Outdoor Condensor BTU/Tonnage18,000 BTU/1.5 Ton
WM Air Handler BTU/Tonnage9,000 BTU/0.75 Ton
Outdoor Condensor Height26.5"
Outdoor Condensor Width35.04"
Outdoor Condensor Depth13.46"
WM Air Handler Height11.69"
WM Air Handler Width31.57"
WM Air Handler Depth7.44"
Handler Suction Line1/2"
Handler Liquid Line1/4"
Warranty5-year Parts / 7-year Compressor
