MRCOOL

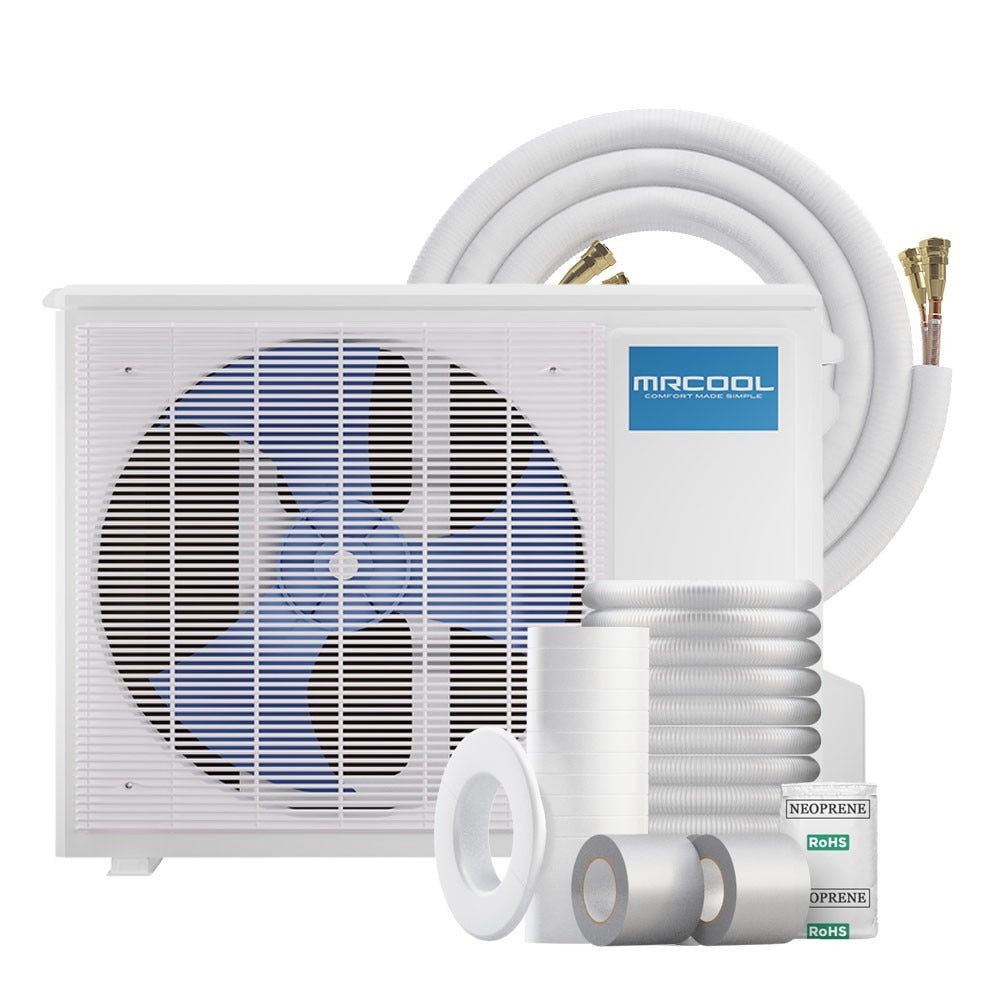

MRCOOL 36000 BTU 3 Ton 18.5 SEER DIY Series Ductless Wall Mounted and Heat Pump Split System 4th Generation

MRCOOL 36000 BTU 3 Ton 18.5 SEER DIY Series Ductless Wall Mounted and Heat Pump Split System 4th Generation

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU SKU:kpi035-DIY-36-HP-WM-230C25

Regular price $2,888.00 USD
Regular price Sale price $2,888.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 36000 BTU (3 Ton)
category: Combo Sets
manufacturer: MRCOOL
mpn: DIY-36-HP-WM-230C25
product_color: White
seer: 18.5 Seer
series: DIY 4th Gen E STAR
subcategory: DIY 4th Gen. Ductless AC Unit
voltage: 208-230 v
weight: 225

Product Description

MRCOOL - DIY-36-HP-WM-230C25

Improve your space for ultimate comfort with the 4th Generation MrCool DIY 36k BTU 18 SEER Ductless Heat Pump Mini Split System. With 36,000 BTU capacity and heating between 1,500-1,800 square feet, this is one of the strongest systems in the MrCool DIY series. You'll be able to easily install the 2-part unit with an air handler inside your space and a compact heat pump condenser outside your home. You will need no special training, tools, or equipment to complete the install“the process is totally user friendly!

One of the ways this can be accomplished is thanks to the Quick Connect line set that comes standard with the unit. These line sets are pre-charged with R-410A refrigerant so there's no vacuum required. The eco-friendly R-410A refrigerant replaces older types that were damaging to the environment. In addition to the Quick Connect line set, the 4th Generation MrCool DIY 36k BTU 18 SEER Ductless Heat Pump Mini Split System now includes the DIYPRO Cable. This unique piece of equipment has easy crimp connectors, protects against yard tools, animals, and weather, and eliminates the need for electrical conduit while giving the unit protection and durability.

With the 4th Generation MrCool DIY 36k BTU 18 SEER Ductless Heat Pump Mini Split System, you have complete control. Utilize the included remote, the SmartHVAC app, or the Amazon Alexa or Google Assistant. The many different usage modes allow you to customize the use of the MrCool DIY Ductless Mini Split. Auto mode regulates the heating or cooling to adjust based on a set temperature. The unit will utilize heat, air, or the fan to maintain the room at the comfort level you desire.

Additional Information

Heat Pump Condensor

Model DIY-36-HP-C-230C25
AHRI Number 207339190
UPC 810063868543
Avg Coverage Area 1,250 - 1,500 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 12
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 31.89
Product Length (in) 16.14
Product Width (in) 37.24
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 147.27
Region Compatibility Nationwide

Additional Information

Wall Mount Air Handler

Model DIY-36-HP-WMAH-230C25
UPC 810063868550
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 14.25
Product Length (in) 11.1
Product Width (in) 49.57
Refrigerant R-410a
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 78.26
