MRCOOL

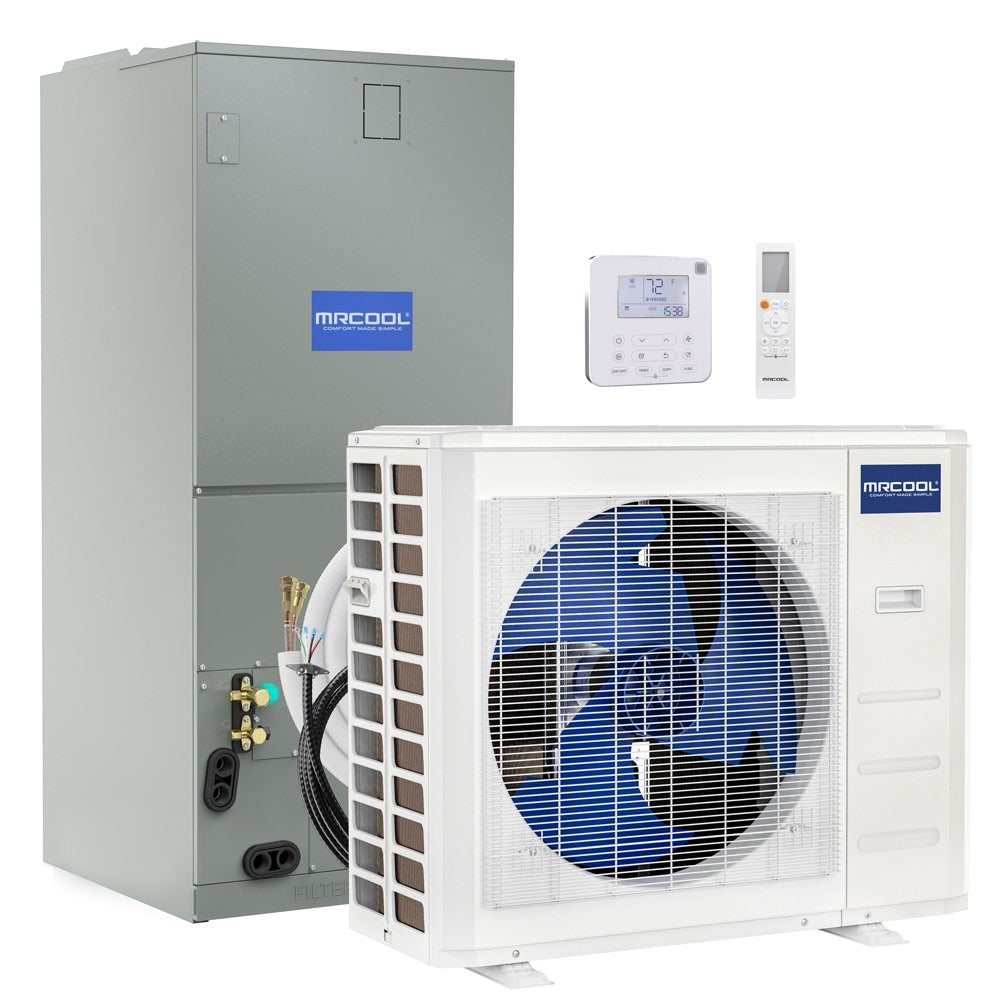

MRCOOL 36K BTU 18 SEER Ducted Air Handler and Condenser

MRCOOL 36K BTU 18 SEER Ducted Air Handler and Condenser

Dropship

Get it by Tue, Jan 27 - Sun, Feb 01

SKU SKU:kpi035-CENTRAL-36-HP-230-00

Regular price $3,523.80 USD
Regular price Sale price $3,523.80 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Combo Sets
manufacturer: MRCOOL
mpn: CENTRAL-36-HP-230-00
series: Central Ducted Series
subcategory: Central Ducted AC Unit
weight: 315

Product Description

Product Overview

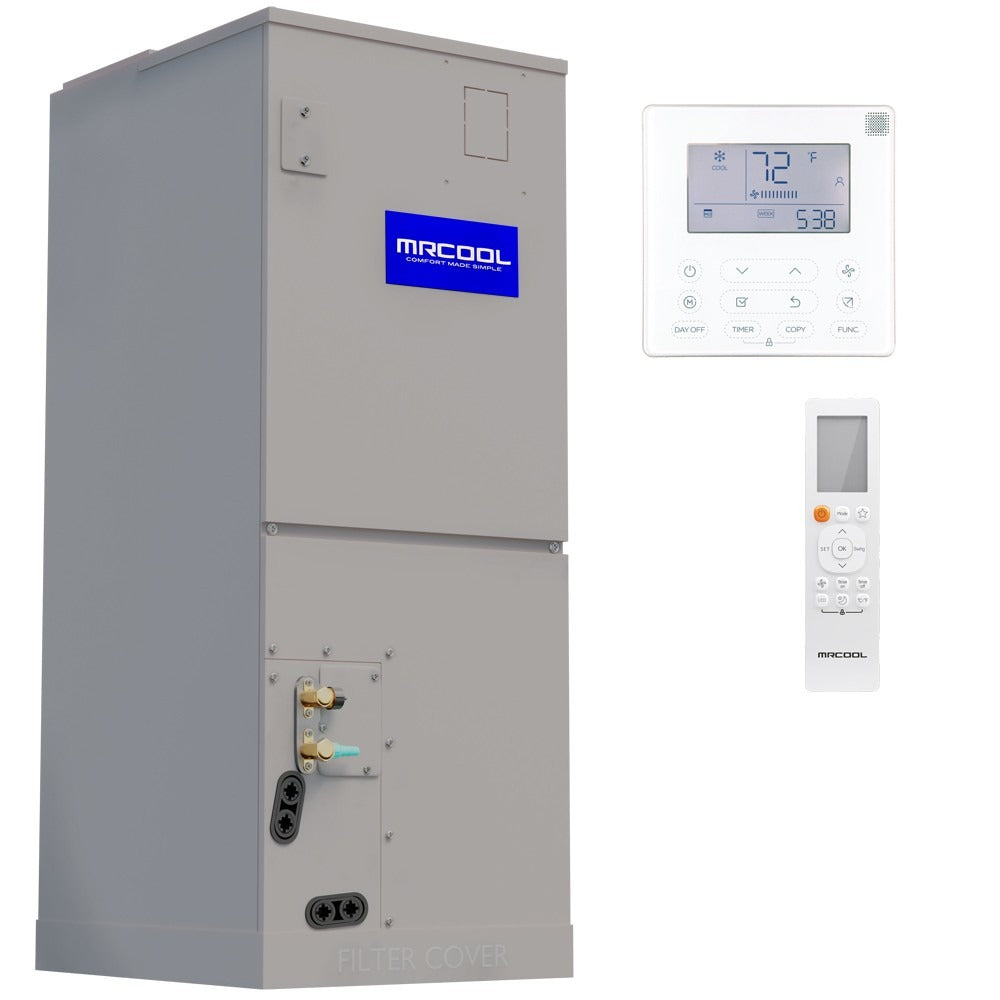

The 3 Ton 18 SEER MrCool Central Ducted Heat Pump Split System includes a durable air handler made of high quality painted galvanized steel with a long lasting build and finish. Its quality construction ensures a longer lifespan of the system. With removable filters, you'll be able to count on clean, healthy air for you and your family. The self-diagnostics panel and thermostat can provide alerts about error codes that may need attention. This will save on maintenance time and costs.

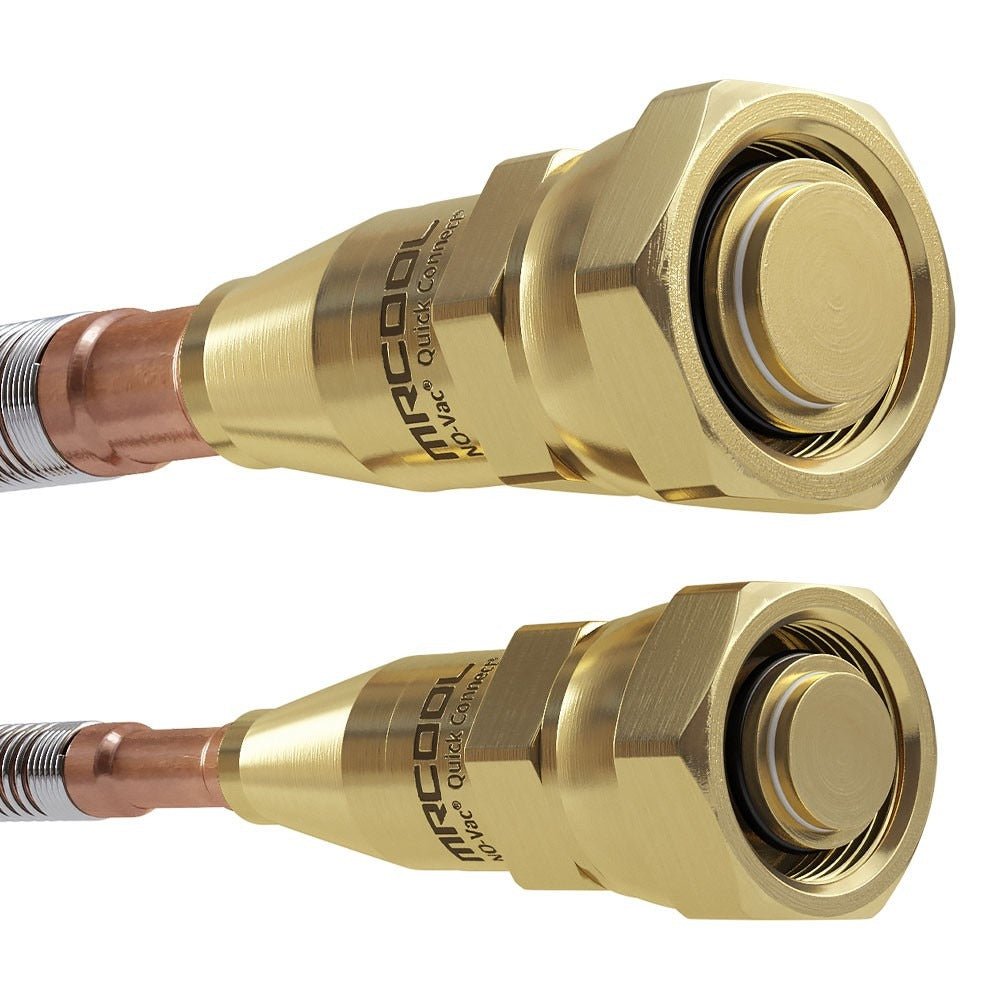

Installation of the 3 Ton 18 SEER MrCool Central Ducted Heat Pump Split System is customizable to any need. Traditional installation is available for the product, or time and money can be saved by utilizing the optional No Vac Quick Connect Line Set that is compatible for this unit. The air handler can be installed by an HVAC professional in an upflow, downflow, horizontal left, or horizontal right configuration. This eliminates the need to reconfigure or manipulate any preexisting ductwork. There is also the useful option of adding an emergency heat kit to this system.

This Bundle Includes:-

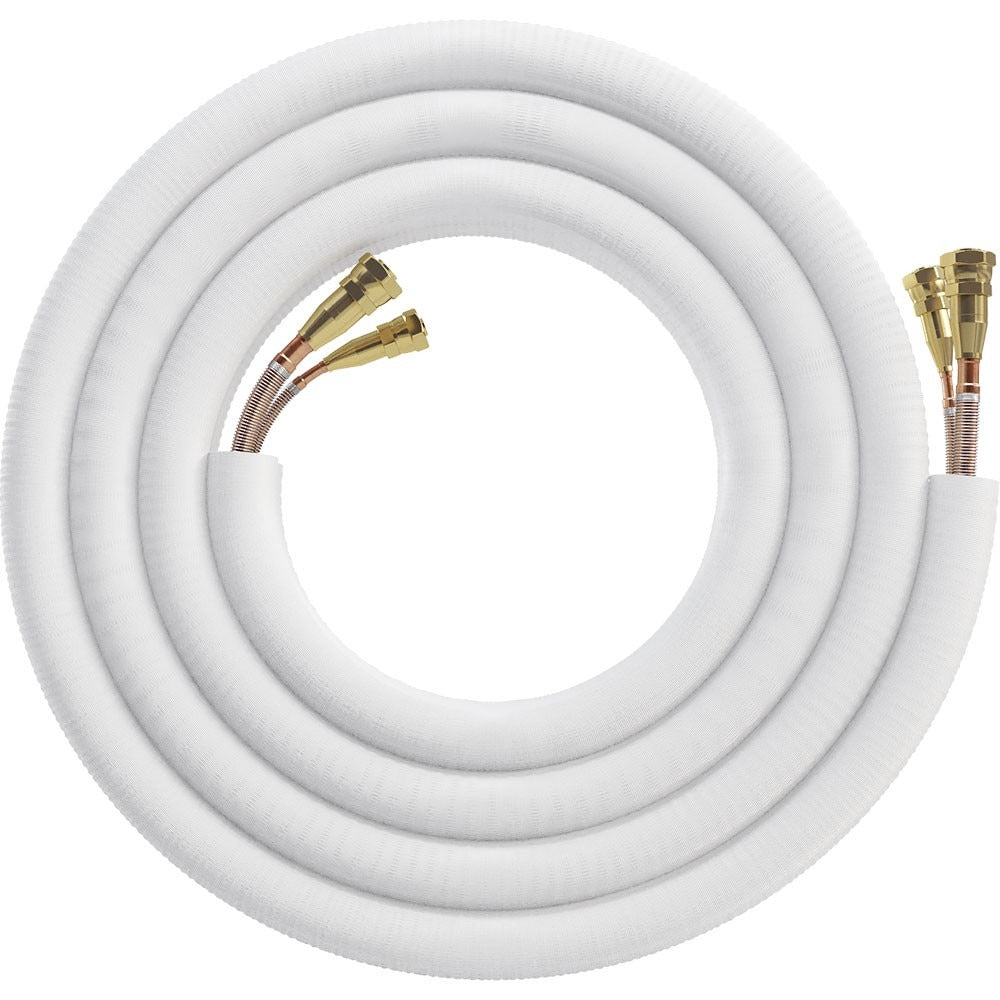

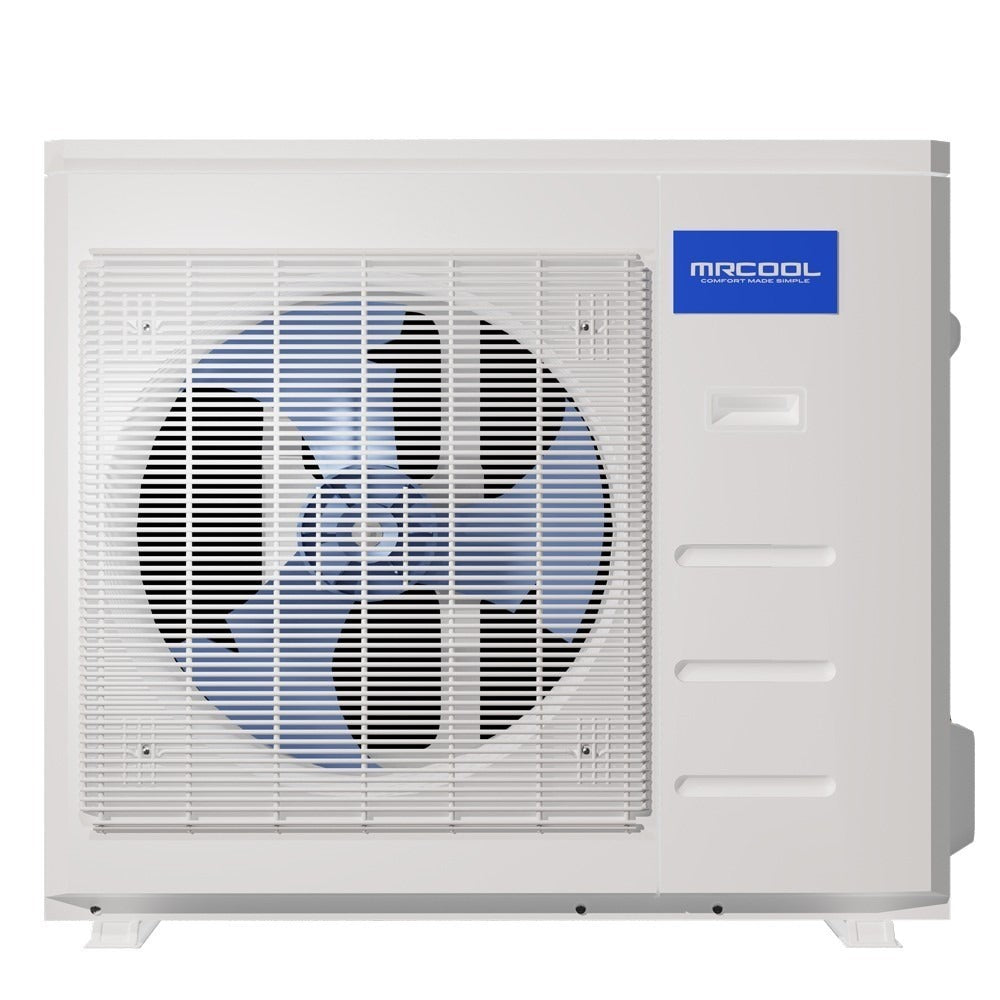

3 Ton 18 SEER MrCool Central Ducted Heat Pump Condenser 3 Ton MrCool Central Ducted Air Handler - Multiposition 3/8" x 3/4" MrCool Universal Quick Connect Lineset - 25 Feet

Additional Information

ModelCENTRAL-36-HP-C-230-00
AHRI Number208960638
UPC840255520058
Avg Coverage Area1,500 - 1,800 Sq Ft
CompressorInverter
Cooling Capacity3 Ton
Electrical Phase1-Phase
Heat Pump Efficiency (HSPF)9.1
Line Set Connection TypeQuick Connect, Flared, or Sweat
Liquid Line Size3/8 inch
Max Overcurrent Protection40 amps
Primary Heating Capacity35,001 - 40,000 BTU
Product Height (in)31.89
Product Length (in)16.14
Product Width (in)37.24
RefrigerantR-410a
Cooling Efficiency18 SEER
SeriesCentral Ducted
Suction Line Size3/4 inch
System Application TypeCentral Split Systems
Voltage240
Weight (lbs)161.16

Additional Information

ModelCENTRAL-36-HP-MUAH-230-00
AHRI Number208960638
UPC840255520119
Air Flow DirectionDownflow, Horizontal, Upflow
ConfigurationFloor Mounted
Blower MotorVariable Speed
Cooling Capacity3 Ton
Electrical Phase1-Phase
Heat Strip CompatibilityUp to 15 kW
Line Set Connection TypeQuick Connect, Flared, or Sweat
Liquid Line Size3/8 inch
Max Overcurrent Protection15 amps
Product Height (in)49.02
Product Length (in)21.02
Product Width (in)21.02
RefrigerantR-410a
SeriesCentral Ducted
Suction Line Size3/4 inch
System Application TypeCentral Split Systems
Voltage240
Weight (lbs)154.1
