capacity:
18000 BTU
category:
Heating & Air Conditioning System Component
depth:
22.44
height:
10.24
manufacturer:
MRCOOL
mpn:
CASSETTE18HP-230
subcategory:
Air Handler
volts:
230 V. / 1 Phase / 60 Hz
weight:
46.3
width:
22.44
Product Description

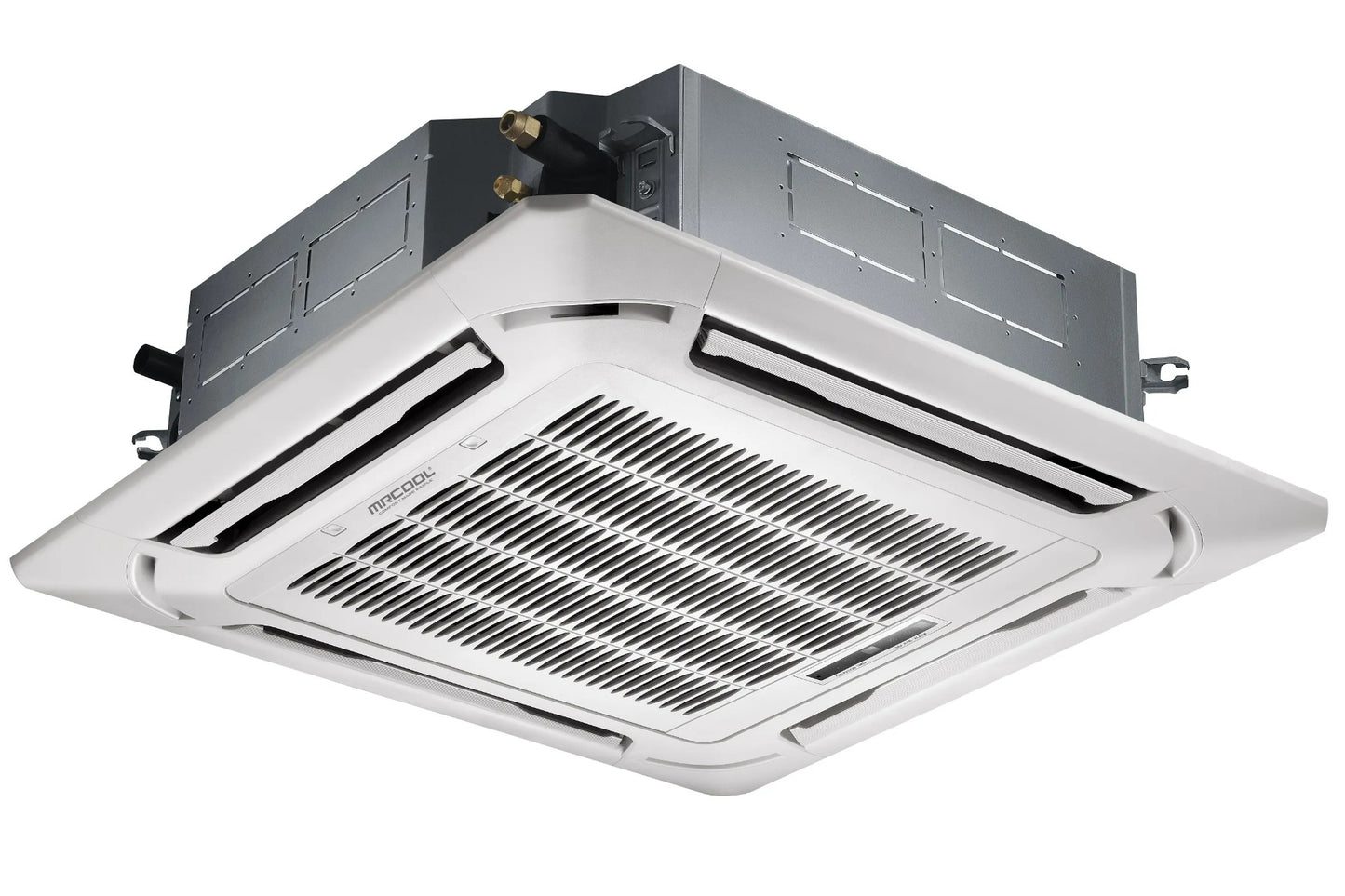

MRCOOL - CASSETTE18HP-230
MRCOOL's cassette air handler provides up to 18000 BTU, efficiently heating and cooling your home alongside the Olympus heat pump condenser.The Mrcool Olympus is The whole house mini-split solution.This 1.5 ton 18,000 BTU ceiling cassette air handler can be matched with any Olympus condenser to condition rooms that are approximately 750 sqft.
- Downflow air direction.
- Variable speed.
- 1.5 ton cooling capacity.
- Flared line set connection.
- 5 year parts warranty.
- Power supply: 208-230 volts/60 Hz, 1-Phase.
- Minimum circuit: 1.9 amps; maximum fuse: 15 amps.
- Piping size liquidside/gasside: 1/4-in to 1/2 inch.
- Energy Star, ETL Listed, AHRI Certified.
Additional Information
Dimensions 22.44 in L x 22.44 in W x 10.24 in H
CertificateEnergy Star, ETL Listed, Prop65
ConfigurationCassette
Cooling Capacity18000 BTU/H
Electrical Phase1 Ph
Fan SpeedsVariable Speed
Heating Capacity18000 BTU/H
Inner Package1
Maximum Amperage15 Amp
Maximum Voltage230V
Power Supply230/208V, 1Ph, 60Hz
Refrigerant Pipe Connection MethodFlare
Suction Line44958
Warranty5 Yr
Weight46.30 lb
