MRCOOL

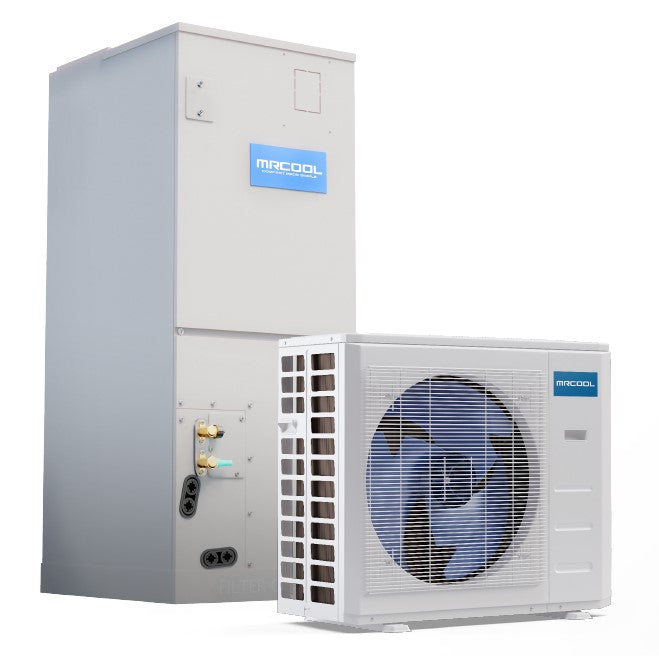

MRCOOL CENTRAL-48-HP-230-00 Ducted Air Handler and Condenser (CENTRAL-48-HP-230-00)

MRCOOL CENTRAL-48-HP-230-00 Ducted Air Handler and Condenser (CENTRAL-48-HP-230-00)

Dropship

Get it by Tue, Jan 27 - Sun, Feb 01

SKU SKU:kpi035-CENTRAL-48-HP-230-00

Regular price $4,173.40 USD
Regular price Sale price $4,173.40 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Combo Sets
manufacturer: MRCOOL
mpn: CENTRAL-48-HP-230-00
product_color: Gray
series: Combo Central Ducted AC Unit
subcategory: Central Ducted AC Unit

Product Description

Product Overview

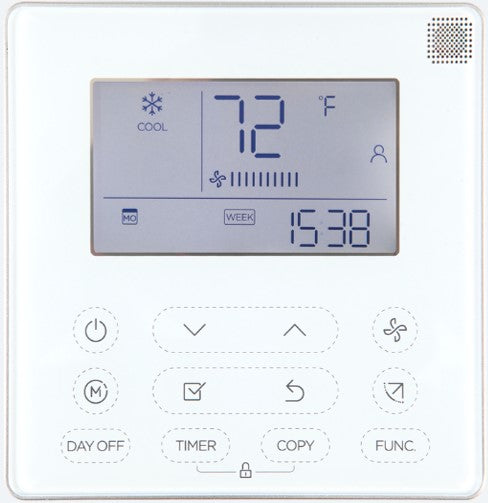

The 4 Ton 17.3 SEER MrCool Central Ducted Heat Pump Split System is a well-constructed system that can be relied on for years to come. It features a durable build and finish with high quality painted galvanized steel. The removable filters ensure that you and your family are always breathing the healthiest, cleanest air possible. The convenient self-diagnostics panel on the air handler and the included wired thermostat can show you possible error codes to maintain your system while saving time and money.

The 4 Ton 17.3 SEER MrCool Central Ducted Heat Pump Split System can be installed by an HVAC professional in an upflow, downflow, horizontal left, or horizontal right configuration, so it can be accommodated to any pre-existing ductwork without any costly manipulation and reconfiguring. You're able to choose and purchase the line set that best suits your needs, and an optional heat kit can be added to the air handler if desired. This system is compatible with the MrCool No Vac Quick Connect Line Set.

This Bundle Includes :

  • 4 Ton 17.3 SEER MrCool Central Ducted Heat Pump CondenserItem: HA22168 Model: CENTRAL-48-HP-C-230-00 Qty: 1

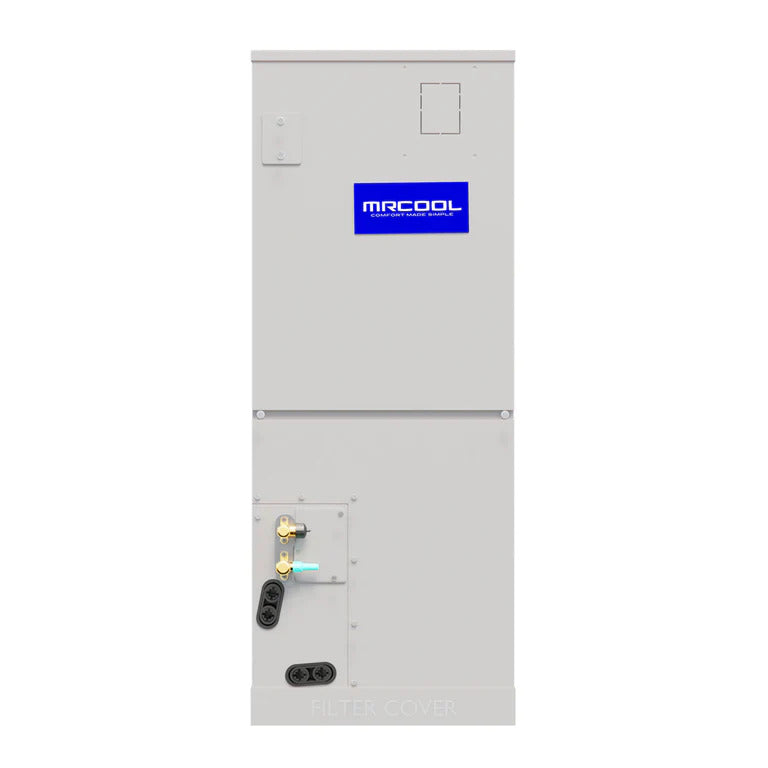

  • 4 Ton MrCool Central Ducted Air Handler - MultipositionItem: HA22174 Model: CENTRAL-48-HP-MUAH-230-00 Qty: 1
  • 3/8" x 3/4" MrCool Universal Quick Connect Lineset - 25 Feet

Additional Information

Model CENTRAL-48-HP-C-230-00
AHRI Number 208960639
UPC 840255520065
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10
Line Set Connection Type Quick Connect, Flared, or Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 40,001 - 45,000 BTU
Product Height (in) 52.48
Product Length (in) 16.34
Product Width (in) 37.48
Refrigerant R-410a
Cooling Efficiency 17 SEER
Series Central Ducted
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Weight (lbs) 248.68
Region Compatibility Nationwide

Additional Information

Model CENTRAL-48-HP-MUAH-230-00
AHRI Number 208960639
UPC 840255520126
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Variable Speed
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Quick Connect, Flared, or Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 49.02
Product Length (in) 21.02
Product Width (in) 21.02
Refrigerant R-410a
Series Central Ducted
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Weight (lbs) 156.75
