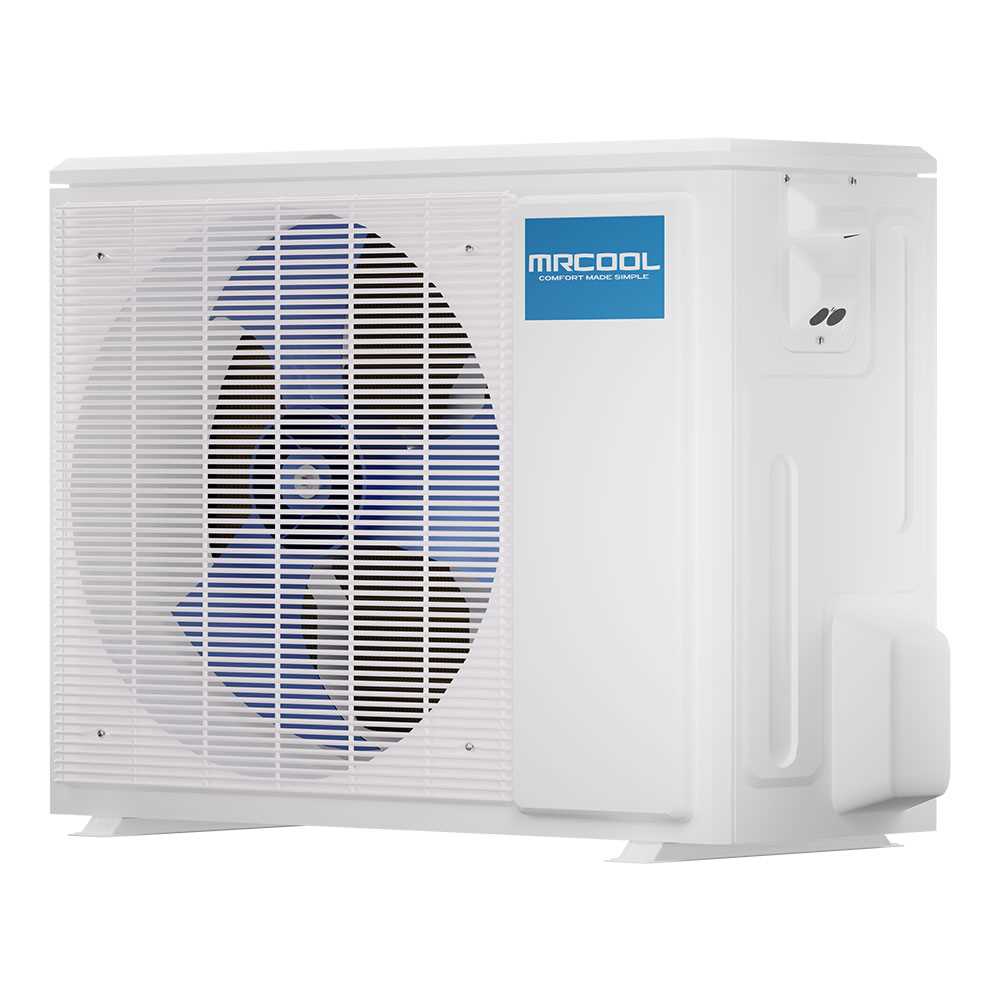

MRCOOL DIY-12-HP-WM-115C25 E Star DIY 4th Gen Ductless Mini-Split Heat Pump Complete System (DIY-12-HP-WM-115C25)

MRCOOL DIY-12-HP-WM-115C25 E Star DIY 4th Gen Ductless Mini-Split Heat Pump Complete System (DIY-12-HP-WM-115C25)

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU SKU:kpi035-DIY-12-HP-WM-115C25

Regular price $1,738.00 USD
Regular price Sale price $1,738.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Heat Pump Condensor System Ducted\
manufacturer: MRCOOL
mpn: DIY-12-HP-WM-115C25
product_color: White
series: DIY 4th Gen E STAR
subcategory: Ductless
type: DIY Ductless Mini Split Heat Pump Condenser

Product Description

MRCOOL - DIY-12-HP-WM-115C25 MrCool E Star DIY 4th Gen 12k BTU Ductless Mini-Split Heat Pump Complete System 115V/60Hz

Introducing the latest in home comfort technology, with the 4th Generation MrCool DIY 12K BTU, 22 SEER Ductless Heat Pump System. This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The MrCool DIY system also includes many features that make it stand out among its competitors.The first of which is its ability to achieve an outstanding 22 SEER efficiency rating allowing it to be Energy Star certified. This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control. The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app. The MrCool mini split is the only system on the market to offer a limited lifetime compressor warranty.

Features:

  • Up to 22 SEER
  • Gold Fin ® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Additional Information

    Series_Extdiy_c
    Unit_TypeMini-Split
    Condenser_Depth11.93 in
    Condenser_Height21.85 in
    Condenser_Width30.12 in
    Condenser_Weight65.70 lbs
    Air_Handler_Depth7.44 in
    Air_Handler_Height11.69 in
    Air_Handler_Width31.57 in
    Air_Handler_Weight24.03 lbs
    Seer22
    Eer12.5
    Cop_473.36
    Hspfhspf4/hspf5 : 11.5/9
    Cfm305.88/211.76/147.06
    Tonnage1
    Cooling_Capacity12000 BTU
    Heating_Capacity12000 BTU
    Voltage115 V
    Phase1
    Cycle60 Hz
    Max_Fuse_Breaker25 A
    Min_Circuit_Ampacity19 A
    ColorWhite
    Color_FamilyWhite
    Rated_Load0.53 A
    Max_Coverage_AreaUp to 500 sqft
    Zone_Capacity1
    Refrigerant_TypeR-410A
    Refrigerant_Volume38.10 oz
    Decibel_Rating37/31/23.5
    Decibel_Rating_Low23.5 dBA
    Decibel_Rating_High37 dBA
    Oscillation4-W
    InverterYes
    Min_Ambient_Cool-13F - 122F
    Min_Ambient_Heat-13F - 75F
    Line_Set_Length25ft
    Max_Lineset_Length82.02 ft
    Liquid_Line_Size1/4 in
    Suction_Line_Size1/2 in
    Compressor_Motor_TypeRotary
    Condenser_Fan_Motor_Rpm850/600
    Blower_Motor_Rpm1100/850/700
    Auxiliary_Heater_IncludedNo
    Auxiliary_Heater_AvailableNo
    Fan_Only_OptionYes
    Quiet_ModeYes
    Auto_CoolYes
    Wifi_CompatibilityYes
    App_CompatibilityYes
    Works_With_IosYes
    Works_With_AndroidYes
    Remote_Control_IncludedYes
    Ul_ListedYes
    Energy_Star_CertifiedYes
    Ahri_CertifiedYes
    Registered_WarrantyLimited Lifetime Compressor
    Base_Warranty5-year Parts/7-year Compressor
    Base_Parts_Warranty5-year Parts
    Registered_Compressor_WarrantyLimited Lifetime Compressor
    Base_Compressor_Warranty7-year Compressor
    Has_BatteriesYes
    Contains_ElectronicsYes
    Contains_ChemicalsYes
    Contains_AerosolYes
    Contains_Compressed_GasYes
    Proposition_65_WarningYes
    Restricted_StatesGU;PR;VI
