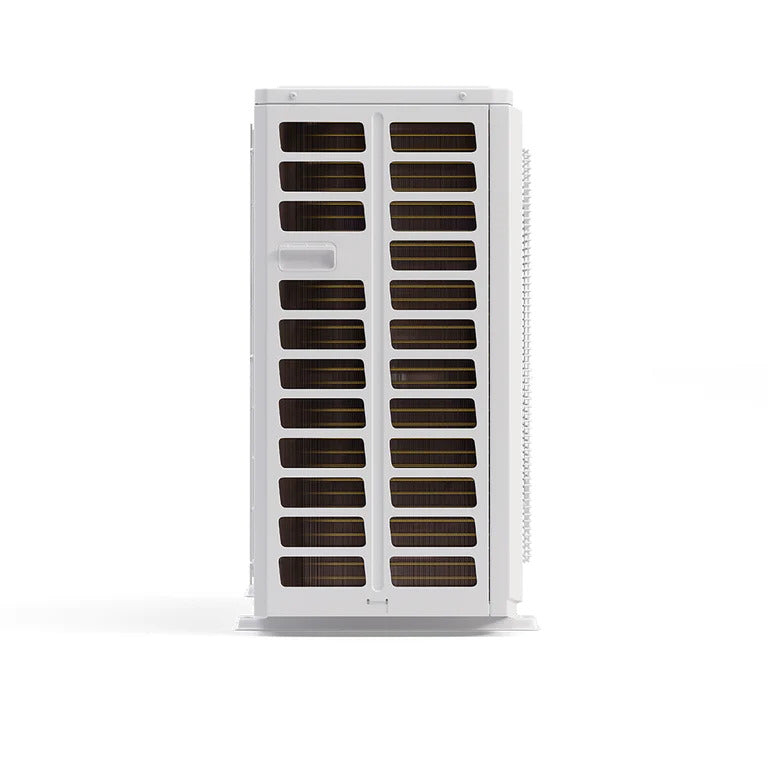

MRCOOL DIY-MULTI3-27HP230C 27000 BTU 22 Seer 4th Gen Multi-Zone Heat Pump Condenser

MRCOOL DIY-MULTI3-27HP230C 27000 BTU 22 Seer 4th Gen Multi-Zone Heat Pump Condenser

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17

SKU SKU:kpi035-DIY-MULTI3-27HP230C

Regular price $1,700.00 USD
Regular price Sale price $1,700.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Heat Pump Condensor System Ducted\
manufacturer: MRCOOL
mpn: DIY-MULTI3-27HP230C
product_color: White
series: DIY 4th Gen Multi-Zone
subcategory: Ductless
type: DIY Ductless Multi Zone Condensor

Product Description

MRCOOL - DIY-MULTI3-27HP230C MrCool DIY 4th Gen Multi-Zone 3-Zone Condenser

Introducing the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13 ‚ °F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool as patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home as heating and cooling.

Features:

  • Up to 22 SEER
  • Gold Fin‚ ® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Additional Information

    Series_Extdiy_c_mz
    Unit_TypeMini-Split
    Net_Depth16.14 in
    Net_Height31.89 in
    Net_Width37.24 in
    Net_Weight139.99 lbs
    Seer22
    Eer12
    Hspfhspf4/hspf5 : 10.3/8.2
    Cfm2129.41
    Cooling_Capacity27000 BTU
    Heating_Capacity27000 BTU
    Voltage208-230 V
    Phase1
    Cycle60 Hz
    Max_Fuse_Breaker40 A
    Min_Circuit_Ampacity26 A
    ColorWhite
    Color_FamilyWhite
    Zone_CapacityUp to 3
    Refrigerant_TypeR-410A
    Refrigerant_Volume91.71 oz
    Decibel_Rating61 dBA
    InverterYes
    Min_Ambient_Cool5F ~ 122F
    Min_Ambient_Heat-13F ~ 75.2F
    Max_Lineset_Length147.64ft TOTAL
    Liquid_Line_Size1/4in
    Suction_Line_Size3/8in
    Compressor_Motor_TypeTwin - Rotary
    Condenser_Fan_Motor_Rpm1050/900/850
    Wifi_CompatibilityYes
    App_CompatibilityYes
    Works_With_IosYes
    Works_With_AndroidYes
    Registered_WarrantyLimited Lifetime Compressor
    Base_Warranty5-year Parts/7-year Compressor
    Base_Parts_Warranty5-year Parts
    Registered_Compressor_WarrantyLimited Lifetime Compressor
    Base_Compressor_Warranty7-year Compressor
    Contains_ElectronicsYes
    Contains_ChemicalsYes
    Contains_AerosolYes
    Contains_Compressed_GasYes
    Proposition_65_WarningYes
