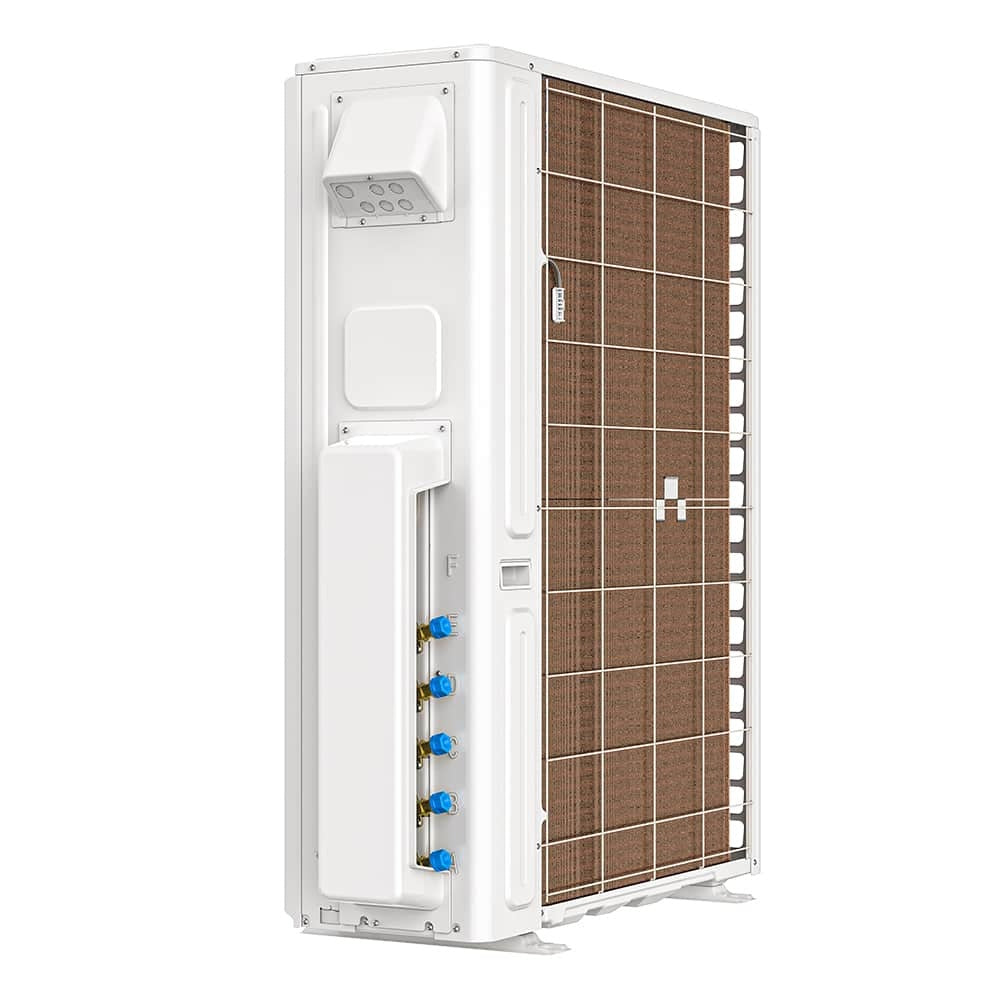

MRCOOL DIY-MULTI5-48HP230C 48000 BTU 20.5 Seer 4th Gen Multi-Zone Series Ductless Mini-Split Inverter 5 Zone Heat Pump Condenser

MRCOOL DIY-MULTI5-48HP230C 48000 BTU 20.5 Seer 4th Gen Multi-Zone Series Ductless Mini-Split Inverter 5 Zone Heat Pump Condenser

Dropship

SKU SKU:kpi035-DIY-MULTI5-48HP230C

Regular price $2,814.00 USD
Regular price Sale price $2,814.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Heat Pump Condensor System Ducted\
manufacturer: MRCOOL
mpn: DIY-MULTI5-48HP230C
product_color: White
series: DIY 4th Gen Multi-Zone
subcategory: Ductless
type: DIY Ductless Multi Zone Condensor

Product Overview

MrCool DIY 4th Gen Multi-Zone 5-Zone Condenser

Introducing the latest in home comfort solutions with the new 4th Generation MrCool DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5 ‚ °F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool as patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

Features:

  • Up to 20.5 SEER
  • Gold Fin‚ ® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Additional Information

    Series_Extdiy_c_mz
    Unit_TypeMini-Split
    Net_Depth16.34 in
    Net_Height52.48 in
    Net_Width37.48 in
    Net_Weight222.89 lbs
    Seer20.5
    Eer11
    Hspfhspf4/hspf5 : 11/8.5
    Cfm4500
    Cooling_Capacity48000 BTU
    Heating_Capacity48000 BTU
    Voltage208-230 V
    Phase1
    Cycle60 Hz
    Max_Fuse_Breaker60A
    Min_Circuit_Ampacity40 A
    ColorWhite
    Color_FamilyWhite
    Zone_CapacityUp to 5
    Refrigerant_TypeR-410A
    Refrigerant_Volume162 oz
    Decibel_Rating61.5 dBA
    InverterYes
    Min_Ambient_Cool5F ~ 122F
    Min_Ambient_Heat5F ~ 75.2F
    Max_Lineset_Length246.06 ft TOTAL
    Liquid_Line_Size1/4in
    Suction_Line_Size3/8in+1/2in
    Compressor_Motor_TypeRotary
    Condenser_Fan_Motor_Rpm900/850/800/750
    Wifi_CompatibilityYes
    App_CompatibilityYes
    Works_With_IosYes
    Works_With_AndroidYes
    Registered_WarrantyLimited Lifetime Compressor
    Base_Warranty5-year Parts/7-year Compressor
    Base_Parts_Warranty5-year Parts
    Registered_Compressor_WarrantyLimited Lifetime Compressor
    Base_Compressor_Warranty7-year Compressor
    Contains_ElectronicsYes
    Contains_ChemicalsYes
    Contains_AerosolYes
    Contains_Compressed_GasYes
    Proposition_65_WarningYes
