capacity:
For 24000 Btu - 36000 Btu
category:
Accessories
depth:
35 in
height:
35 in
length:
35ft.
manufacturer:
MRCOOL
mpn:
DIY35-3858C
series:
DIY
subcategory:
Line set
weight:
28
width:
5 in
Product Description

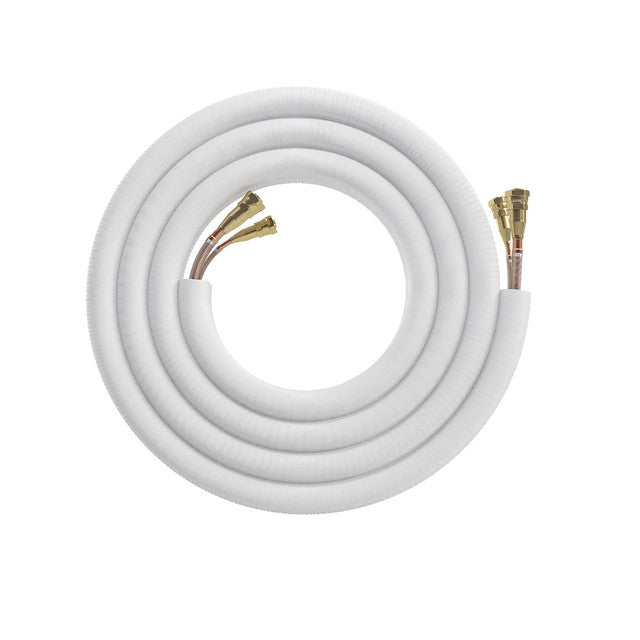

MRCOOL - DIY35-3858C
This line set has a 3/8" liquid line, 5/8" suction line and is 35' long. It is for use with the DIY-MULTI Zone Systems in conjunction with the 24,000 BTU and 36,000 BTU Indoor Wall units. It can also be used to extend the line set length of the 24,000 and 36,000 DIY Single Zone Systems. The line set is encased in a strong, 3/4" UV Protective Insulation Sleeve. It will prevent sun damage, weather erosion and destruction from wildlife. The No-Vac Line Set is kink resistant and easy to bend during installation.Mr. Cool Quick Connect Line Sets are required for Mr. Cool DIY Single and Multi-Zone Systems. The DIY35-3858C is for use with the 24,000 BTU and 36,000 BTU Indoor Wall Units only.
- Length: 35-ft.
- 3/8 x 5/8.
- For 9K, 12K and 18K DIY Series.
- Kink resistant.
- Leak proof.
- No vacuum needed.
- Easy to install.
- Pre-charged with R-410A refrigerant.
- Liquid Line Size: 1/4.
- Suction Line Size: 1/2.
Additional Information
ModelDIY35-3858C
UPC840255509862
Liquid Line Size3/8 inch
Suction Line Size5/8 inch
System Application TypeDuctless Split Systems
Weight (lbs)28 lbs
Length25ft
Product_Height (in.)35 In
Product_Depth (in.)35 In
Product_Width (in.)5 in
ColorCopper
Line Set Fitting TypeQuick-Connection
Line Set Fitting TypeQuick-Connection
Contains Chemicals Yes
Contains Aerosol Yes
