MRCOOL - DUCT-09HP-230

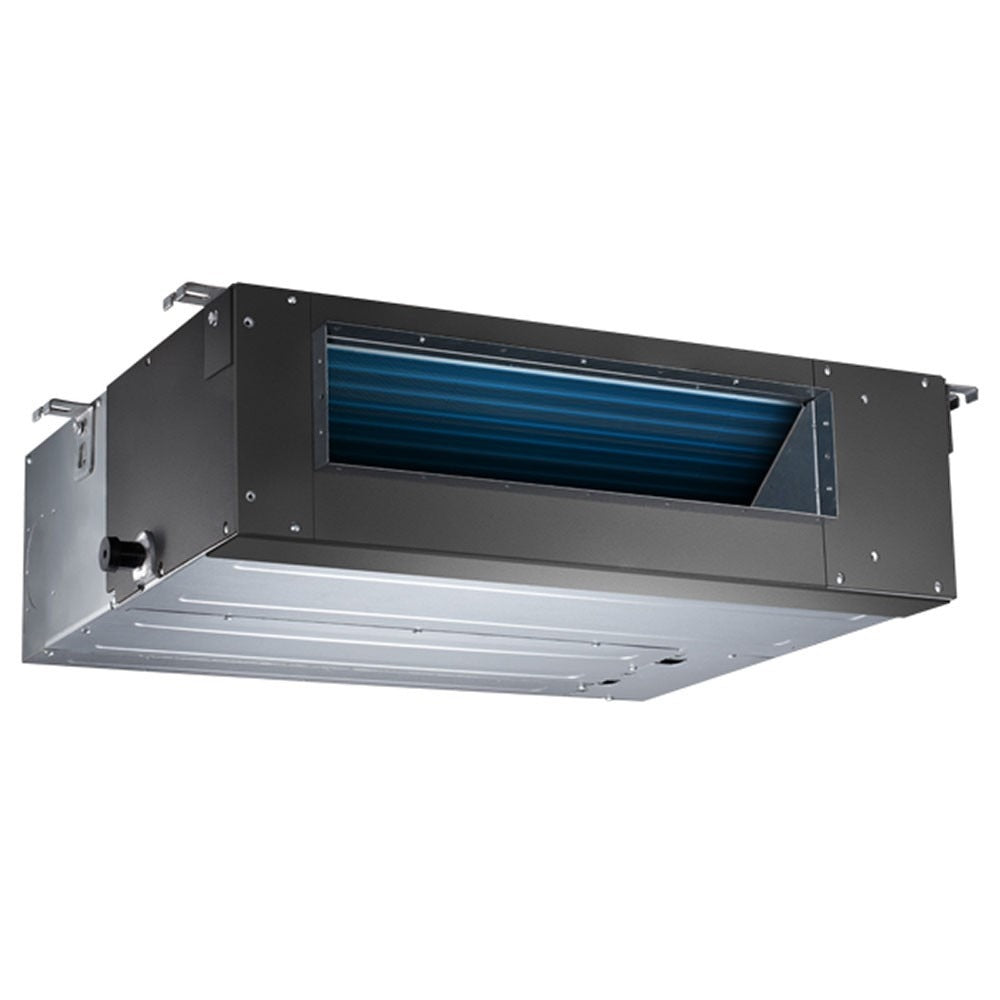

Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler - 230V-60HZ
Additional Information
Series_Extoly_multi
Unit_TypeMini-Split
Net_Depth19.92 in
Net_Height7.87 in
Net_Width22.55 in
Net_Weight39.02 lbs
Freight_Class70
Cfm176.57/282.52/353.15
Tonnage44654
Cooling_Capacity9000 BTU
Heating_Capacity10000 BTU
Voltage208-230 V
Phase1
Cycle60 Hz
Max_Fuse_Breaker15 A
Min_Circuit_Ampacity1.2 A
Mount_TypeDucted
ColorWhite
Color_FamilyWhite
Max_Coverage_Area750 sq ft
Refrigerant_TypeR-410A
Decibel_Rating39/37/33 dBA
Decibel_Rating_Low33 dBA
Decibel_Rating_High39 dBA
Air_Flow_DirectionDucted
Number_Of_SpeedsVariable
OscillationNo
InverterYes
Liquid_Line_Fitting3/8 in
Liquid_Line_Size1/4 in
Suction_Line_Fitting1/2 in
Suction_Line_Size3/8 in
Control_TypeLED
Blower_Motor_Rpm1010/890/780
Auxiliary_Heater_IncludedNo
Auxiliary_Heater_AvailableNo
Low_Voltage_CompensationNo
Overload_ProtectionYes
Adjustable_ThermostatYes
Fan_Only_OptionYes
Quiet_ModeYes
Sleep_ModeNo
Auto_CoolYes
Wifi_CompatibilityNo
App_CompatibilityNo
Works_With_IosNo
Works_With_AndroidNo
Remote_Control_IncludedWir
Ul_ListedYes
Csa_ListedNo
Etl_ListedYes
Energy_Star_CompliantYes
Energy_Star_CertifiedYes
Ahri_CertifiedYes
Registered_Warranty5-year Parts/7-year Compressor/1-year Remote
Base_WarrantyNone
Registered_Parts_Warranty5-year
Base_Parts_WarrantyNone
Registered_Compressor_Warranty7-year
Base_Compressor_WarrantyNone
Registered_Remote_Warranty1-year
Base_Remote_WarrantyNone
Registered_Labor_WarrantyNone
Base_Labor_WarrantyNone
Has_BatteriesYes
Contains_ElectronicsYes
Contains_ChemicalsYes
Contains_AerosolYes
Contains_Compressed_GasYes
Proposition_65_WarningYes
Restricted_StatesGU PR;VI
CategoryHeating & Air Conditioning System Component
ManufacturerMRCOOL
MpnDUCT-09HP-230
Product colorWhite
SeriesOlympus Multi
SubcategoryAir Handler
