MRCOOL MAC16030A 2.5 Ton Split System A/C Condenser (MAC16030A)

MRCOOL MAC16030A 2.5 Ton Split System A/C Condenser (MAC16030A)

Dropship

SKU SKU:kpi035-MAC16030A

Regular price $1,500.00 USD
Regular price Sale price $1,500.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Heat Pump Condensor System Ducted\
manufacturer: MRCOOL
mpn: MAC16030A
product_color: Gray
series: Signature Split Air Conditioner
subcategory: Ductless
type: Central Ducted Split System AC Condenser

Product Description

MRCOOL - MAC16030A 2.5 Ton up to 16 SEER Split System A/C Condenser

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 2.5 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).

Features:

  • CoolGuard total corrosion protection technology designed coil
  • Corner-mounted controls for easy service
  • Full metal louvered construction to protect the coil/ hail protection
  • Factory installed high pressure switch
  • Thread-on pressure switches for simple, quick replacement
  • 10 year limited warranty on compressor
  • Charged for 15 feet of line set

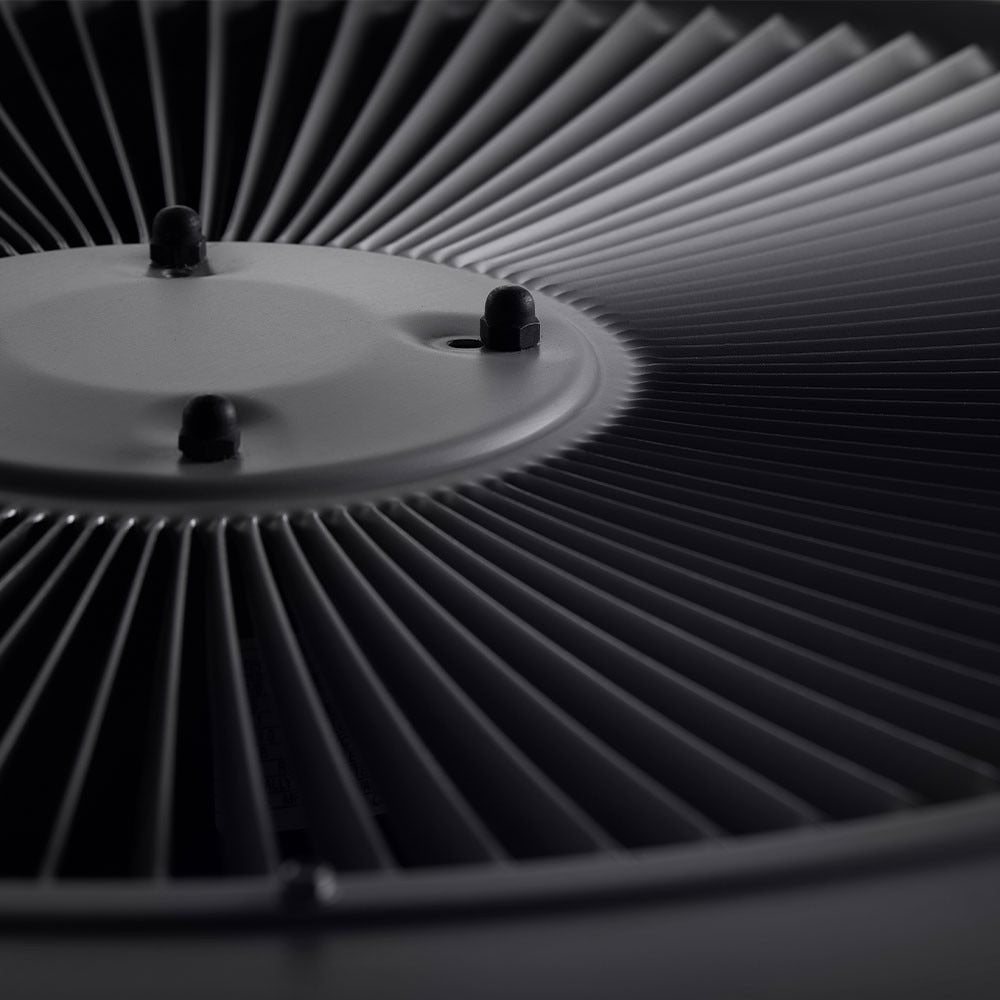

  • Fan orifice for smoother airflow and sound level reduction
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leak proof construction
  • All units ETL and ETLC approved and AHRI Certified

Additional Information

Series_Extmac16
Unit_TypeSplit System AC Condensers
Net_Depth37
Net_Height28.25
Net_Width28.25
Net_Weight169
Seerup to 16
Max_Seer16
Eer12.2
Cfm945-1045
Tonnage2.5
Cooling_Capacity26000-28000
Voltage208/230
Phase1
Cycle60
StageSingle
Max_Fuse_Breaker25 A
Min_Circuit_Ampacity17 A
ColorGray
Color_FamilyGray
Rated_Load12.8
Max_Coverage_Area1250
Refrigerant_TypeR-410A
Refrigerant_Volume88
Decibel_Rating76
InverterNo
Min_Ambient_Heat(-20F)
Lineset_IncludedNo
Line_Set_Length15FT, 25FT, 35FT, 50FT
Max_Lineset_Length50FT
Lineset_Fitting_TypeSweat
Liquid_Line_Size3/8 in
Suction_Line_Size 3/4
Compressor_Motor_TypeScroll
Condenser_Fan_Motor_TypeDirect Drive
Condenser_Fan_Motor_Hp 1/6
Condenser_Fan_Motor_Rpm825
Metering_DeviceTXV
Auxiliary_Heater_IncludedNo
Auxiliary_Heater_AvailableYes
Auxiliary_Heater_Sizes7.5kw, 10kw, 15kw
Ul_ReconizedNo
Ul_ListedNo
Etl_Listedyes
Etl_Certifiedno
Leed_Certifiedno
Energy_Star_Compliantno
Energy_Star_Certifiedno
Ahri_Certifiedyes
Registered_Warranty10 year registered parts warranty
Base_WarrantyStandard 5 year limited parts warranty
Registered_Parts_WarrantyRegistered 10 Year Parts Warranty
Base_Parts_Warranty5 Year Parts Warranty
Has_BatteriesNo
Contains_ElectronicsYes
Contains_ChemicalsYes
Contains_AerosolYes
Contains_Compressed_GasYes
Proposition_65_WarningYes
Restricted_StatesNo
