category:
Heating & Air Conditioning System Component
manufacturer:
MRCOOL
mpn:
MAHM024ETA
product_color:
Gray
series:
Signature Split Air Handler up to 16 SEER
subcategory:
Air Handler
Product Description

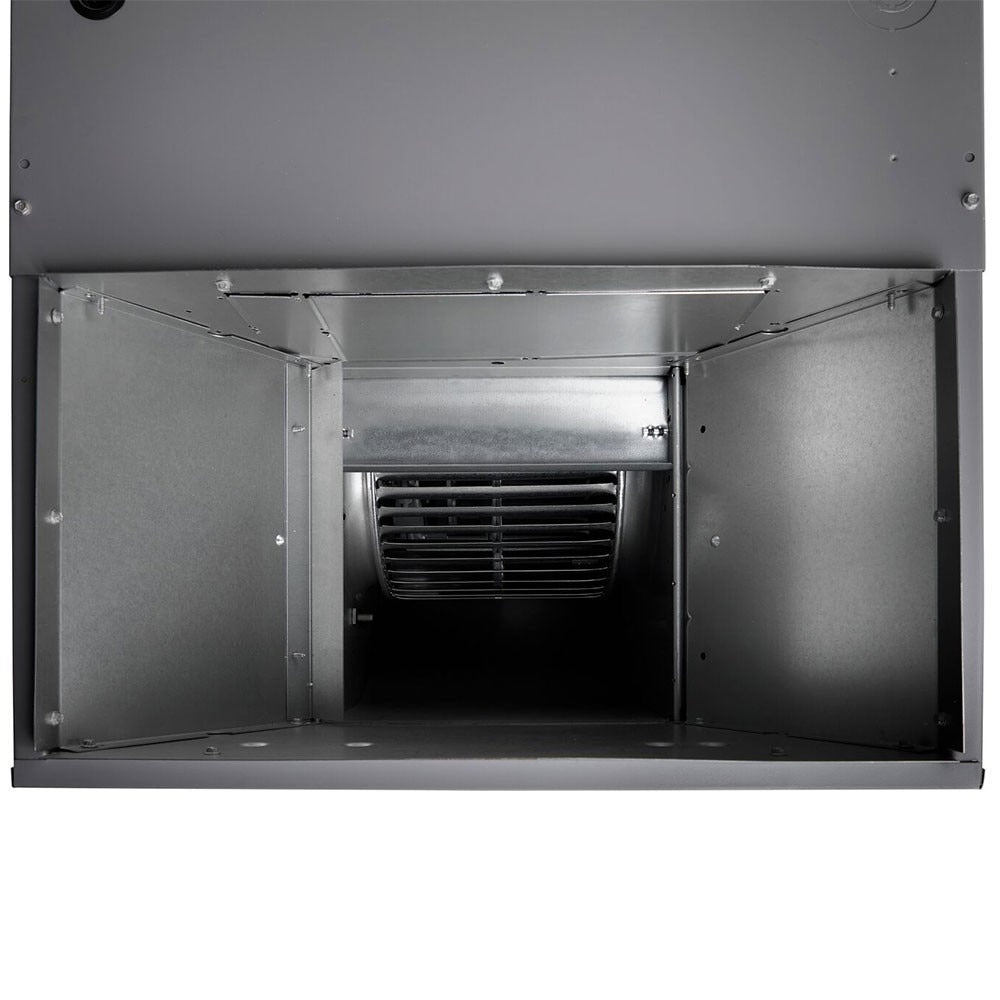

MRCOOL - MAHM024ETA 2 Ton 16 SEER Split System Air Handler
The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
Features:
- Smaller profile for closet applications
- Optional auxiliary heat kits available
- Baked polyester paint finished over galvanized steel for maximum duraility
- Antimicrobial treated drain pan to resist mold and mildew growth
- Factory tested for leakproof construction
- Foil faced insulation for enhanced indoor air quality
- CoolGuard total corrosion protection technology designed coil
- Built-in indoor time delay for increased efficiency and comfort
- One piece design
- High-strength/heat resistant/corrosion resistance SMC drain pans
- Multi-position = Upflow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit)
Additional Information
Series_Extmahm_eta
Unit_TypeAir Handler
Net_Depth16.5
Net_Height45.5
Net_Width18.5
Net_Weight127
SeerUp to 16
ConfigurationMulti-Position
Cfm800
Tonnage2
Cooling_Capacity24000
Voltage208/230
Phase1
Cycle60
Max_Fuse_Breaker15
Min_Circuit_Ampacity5.1
ColorGray
Color_FamilyGray
Max_Coverage_Area1000
Refrigerant_TypeR-410A
Number_Of_Speeds5
InverterNo
Lineset_IncludedNo
Line_Set_Length15ft, 25ft, 35ft, 50ft
Max_Lineset_Length50ft
Lineset_Fitting_TypeSweat
Liquid_Line_Size 3/8
Suction_Line_Size 3/4
Blower_Motor_TypeECM
Blower_Motor_Hp 1/2
Blower_Motor_Speeds5 Speed
Blower_Motor_Rpm430-1050
Filter_Typereplacement
Filter_Size15x20
Auxiliary_Heater_Includedno
Auxiliary_Heater_Availableyes
Auxiliary_Heater_Sizes10kw
Ul_ReconizedNo
Ul_ListedNo
Etl_Listedyes
Etl_Certifiedno
Iso_CertifiedNo
Leed_CertifiedNo
Energy_Star_CompliantNo
Energy_Star_CertifiedNo
Ahri_CertifiedYes
Registered_WarrantyRegistered 10 Year Parts Warranty
Base_Warranty5 Year Parts Warranty
Registered_Parts_WarrantyRegistered 10 Year Parts Warranty
Base_Parts_Warranty5 Year Parts Warranty
Has_BatteriesNo
Contains_ElectronicsYes
Contains_ChemicalsYes
Contains_AerosolYes
Contains_Compressed_GasYes
Proposition_65_WarningYes
Restricted_StatesNo
