category:
Heating & Air Conditioning System Component
manufacturer:
MRCOOL
mpn:
MPC601M414A
product_color:
Gray
series:
Signature Packaged Air Conditioner
subcategory:
Signature Packaged Air Conditioner
Product Overview

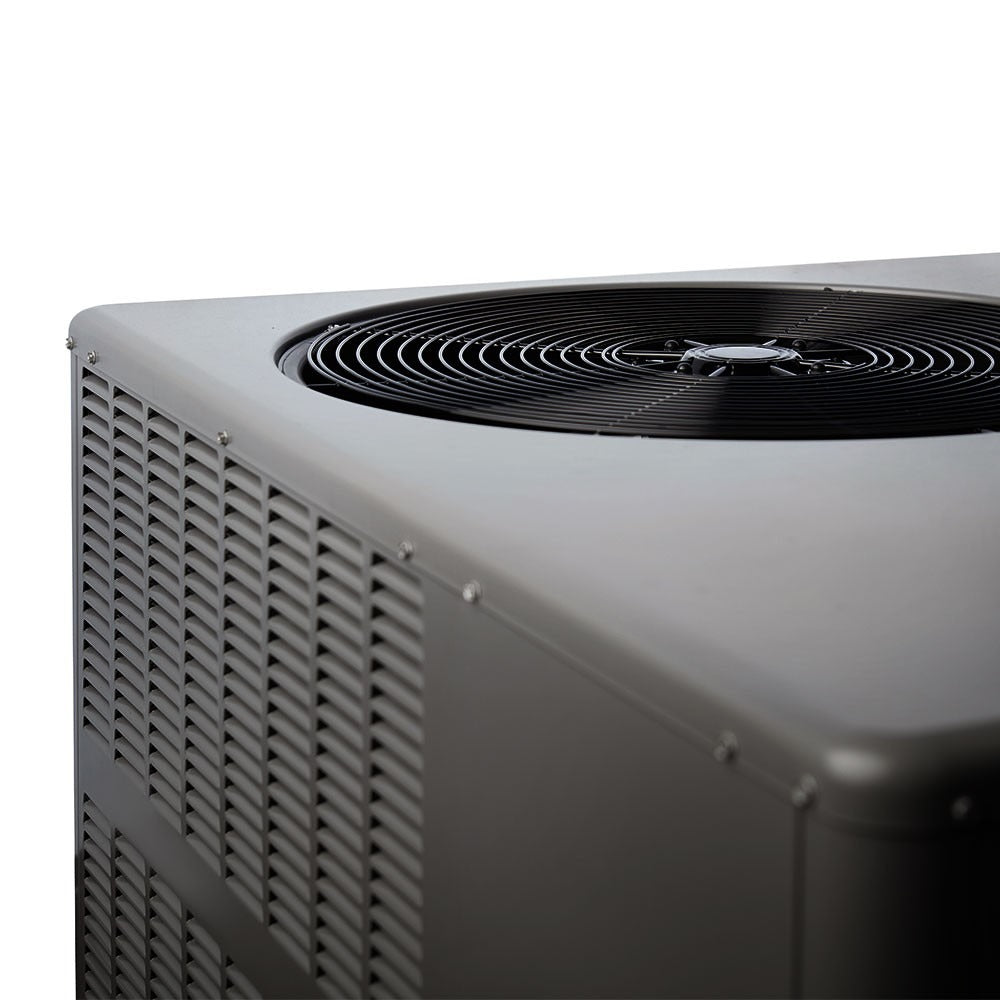

14 SEER 5 Ton Louvered Packaged Air Conditioner
This is a brand new 5 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).
Features:
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
Additional Information
Series_Extmpc
Unit_TypePackage AC
Net_Depth55.27
Net_Height40.88
Net_Width46.8
Net_Weight445
Freight_Class125
Seer14
Eer11
Cfm1800
Tonnage5
Cooling_Capacity57000
Voltage208-230
Phase1
Cycle60
Max_Fuse_Breaker60
Min_Circuit_Ampacity38.9
ColorGray
Color_FamilyGray
Rated_Load26.4
Max_Coverage_Area2500
Refrigerant_TypeR-410A
Refrigerant_Volume125
Decibel_Rating78
Min_Ambient_Heat0
Compressor_Motor_TypeSingle Stage
Condenser_Fan_Motor_TypeECM
Condenser_Fan_Motor_Hp 1/4
Blower_Motor_TypeECM
Blower_Motor_Hp1
Blower_Motor_SpeedsMulti-speed
Blower_Motor_Rpm1120-2090
Filter_TypeReplacable
Filter_Size20x20
Metering_DeviceTXV
Auxiliary_Heater_IncludedNo
Auxiliary_Heater_AvailableYes
Auxiliary_Heater_Sizes5kw, 7.5kw, 10kw, 15kw, 20kw
Ul_ReconizedNo
Ul_ListedNo
Etl_ListedYes
Etl_CertifiedNo
Leed_CertifiedNo
Ashrae_CompliantNo
Energy_Star_CompliantNo
Energy_Star_CertifiedNo
Ahri_CertifiedYes
Registered_Warranty10-Year Parts Limited Warranty
Base_Warranty5 year base limited parts warranty
Has_BatteriesNo
Contains_ElectronicsYes
Contains_ChemicalsYes
Contains_AerosolYes
Contains_Compressed_GasYes
Proposition_65_WarningYes
Restricted_StatesNo
