category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
15 mm
manufacture:
Nachi America
mpn:
15TAB04DUP4
outer_diameter:
47 mm
subcategory:
Ball Screw Support Bearing
upc:
4991893470055
weight:
0.62
width:
15 mm
Product Description

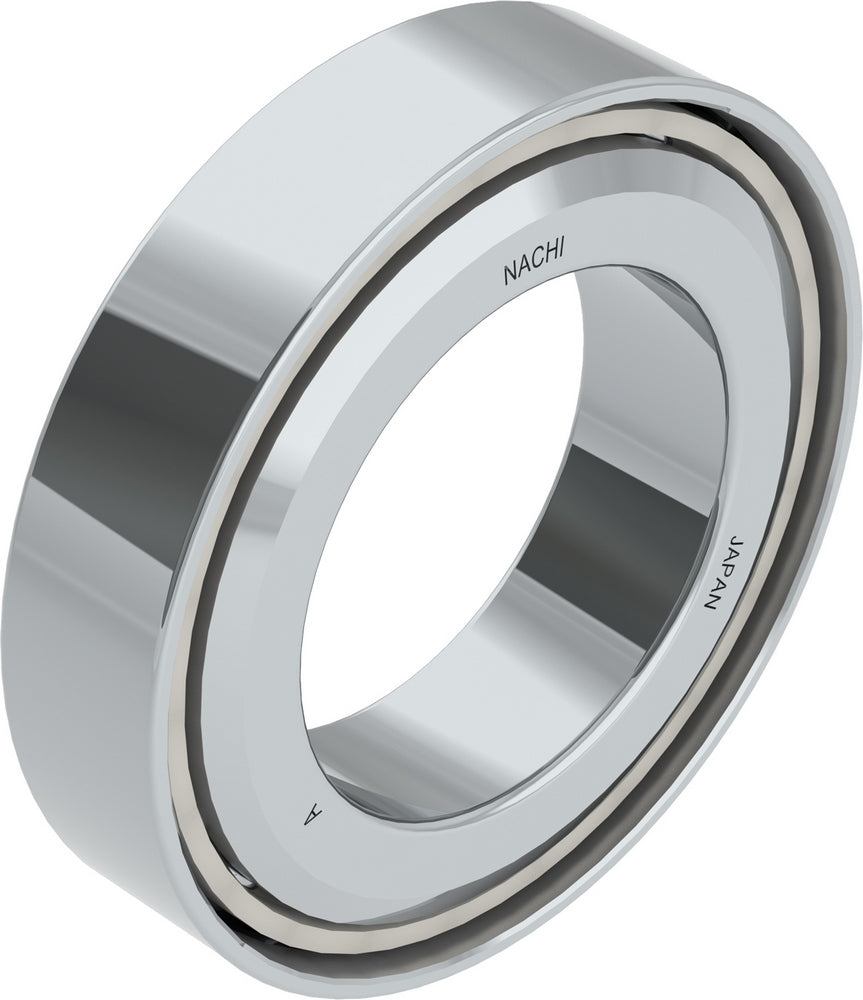

Nachi America - 15TAB04DUP4 This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
Features
NACHI's TAB Series Ball Srew Support Bearings are availible open, contact sealed, or non-contact sealed.
Additional Information
Universally (Flush) Ground Yes
Limiting Speed - Oil 5040 rpm
Contact Angle 60°
Preload Level Medium
Inch/Metric Metric
Bearing Type Ball Screw Support Bearing
Rolling Element Material Steel
Bore Type Cylindrical Bore
Ball Material Steel
Seals or Shields No
Inner Ring Material Steel
Dynamic Load Rating 42000 N
Cage Material Polyamide Resin
ISO Precision Class P4
Outer Ring Material Steel
Limiting Speed - Grease 6300 rpm
Static Load Rating [Max] 64000 N
Temperature Range [Max] 248 °F
EAN or UPC 4991893470055
