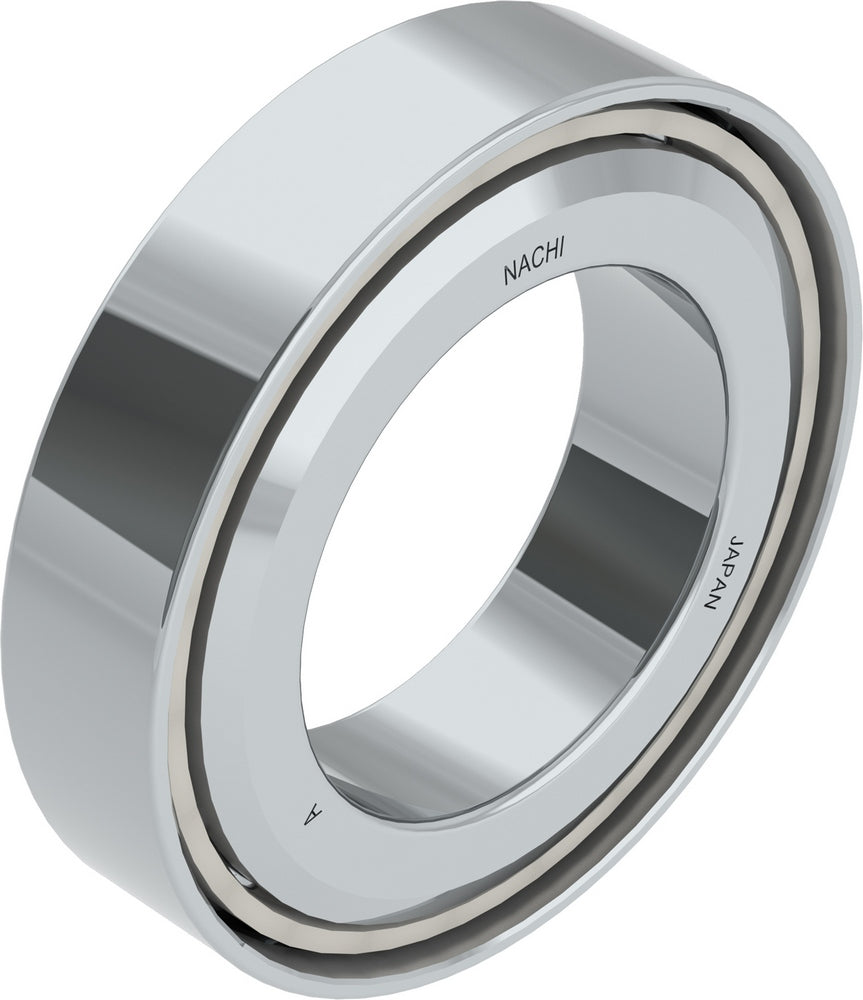

Nachi America - 15TAB04UP4 This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
Features
NACHI's TAB Series Ball Srew Support Bearings are availible open, contact sealed, or non-contact sealed.
Additional Information
Bearing Type Ball Screw Support Bearing
Cage Material Polyamide Resin
Contact Angle 60°
Ball Material Steel
Preload Level Medium
Inch/Metric Metric
Limiting Speed - Oil 8000 rpm
Seals or Shields No
Outer Ring Material Steel
Universally (Flush) Ground Yes
Static Load Rating [Max] 32000 N
ISO Precision Class P4
Dynamic Load Rating 25900 N
Temperature Range [Max] 248 °F
Bore Type Cylindrical Bore
Inner Ring Material Steel
Rolling Element Material Steel
Limiting Speed - Grease 6300 rpm
EAN or UPC 4991893470208
CategoryBall Bearings
Country of originJapan
Inner diameter15 mm
ManufactureNachi America
Mpn15TAB04UP4
Outer diameter47 mm
SubcategoryBall Screw Support Bearing
Upc4991893470208
Weight0.31
Width15 mm
