category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
70 mm
manufacture:
Nachi America
mpn:
21314EXW33KC3
outer_diameter:
150 mm
subcategory:
Spherical Roller Bearings
upc:
4991893855845
weight:
6.83
width:
35 mm
Product Description

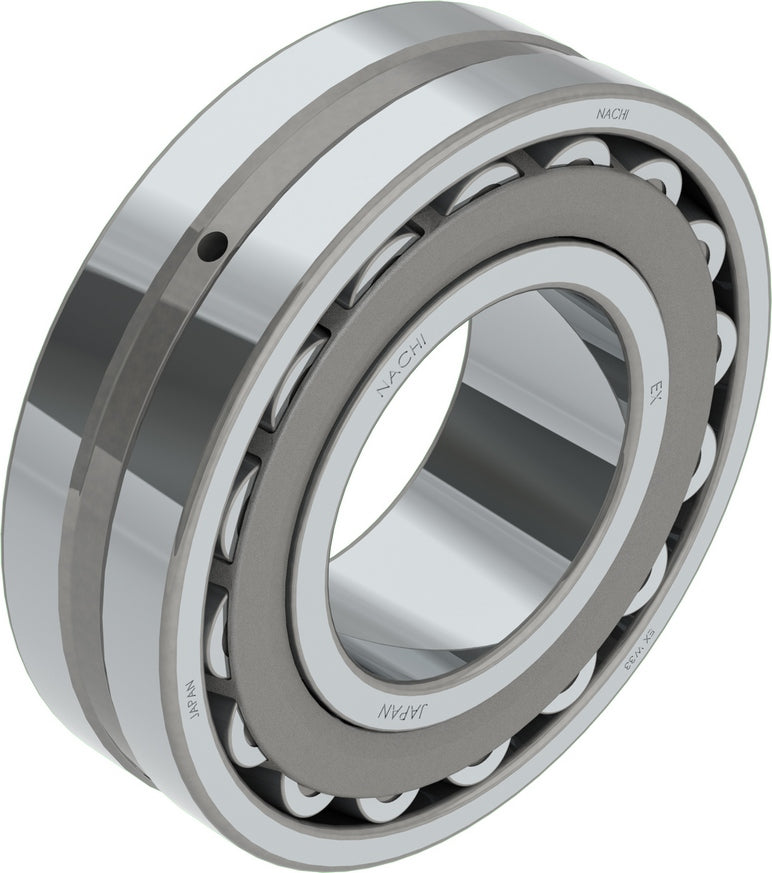

Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
Additional Information
Temperature Range [Max] 392 °F
Dynamic Load Rating 310000 N
Cage Material Steel
ISO Precision Class P0
Limiting Speed - Oil 4000 rpm
Family Name Spherical Roller Bearings
Rolling Element Material Steel
Static Load Rating 260000 N
Outer Ring Material Steel
Radial Internal Clearance C3
Limiting Speed - Grease 3200 rpm
Bore Type Tapered Bore
Inner Ring Material Steel
EAN or UPC 4991893855845
