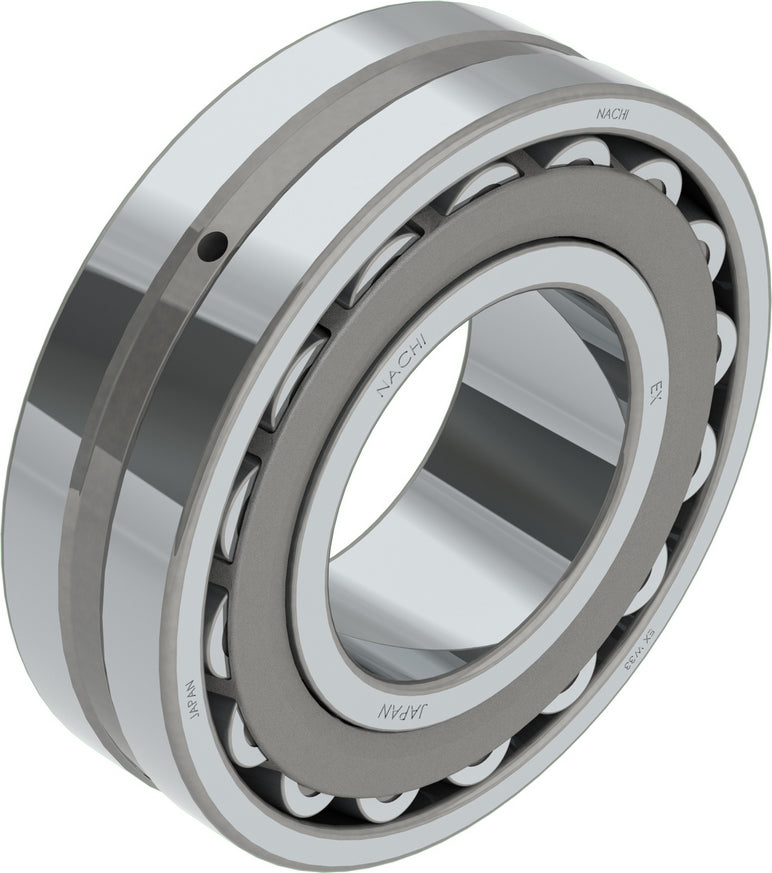

Nachi America - 22314EXQW33VCS120 Nachi is proud to introduce our new Vibrating Screen Bearing for applications with high impact or heavy vibrations. Nachi integrated a hardened steel cage into the standard EXQ High Capacity Bearings. The EXQ-V cage is 10 times more impact-resistant than standard cages.
Features
The new EXQ-V cage has increased tensile strength is more fatigue resistant and more resistant to wear. Nachi’s EXQ-V spherical roller bearing design maintains high load capacities by utilizing the longest length largest diameter rollers in the market. The floating guide ring and new EXQ-V cage design generates less heat and promotes lower operating temperatures. (W33) = Lubricant groove and holes on outer ring
Additional Information
Static Load Rating 415000 N
Limiting Speed - Oil 4000 rpm
Temperature Range [Max] 392 °F
Limiting Speed - Grease 3300 rpm
Rolling Element Material Steel
ISO Precision Class Special
Family Name Spherical Roller Bearings
Outer Ring Material Steel
Bore Type Cylindrical Bore
Dynamic Load Rating 480000 N
Cage Material Nitrocarburized Steel
Inner Ring Material Steel
Radial Internal Clearance C4
EAN or UPC 4991893505900
CategoryBall Bearings
Country of originJapan
Inner diameter70 mm
ManufactureNachi America
Mpn22314EXQW33VCS120
Outer diameter150 mm
SubcategorySpherical Roller Bearings
Upc4991893505900
Weight11.05
Width51 mm
