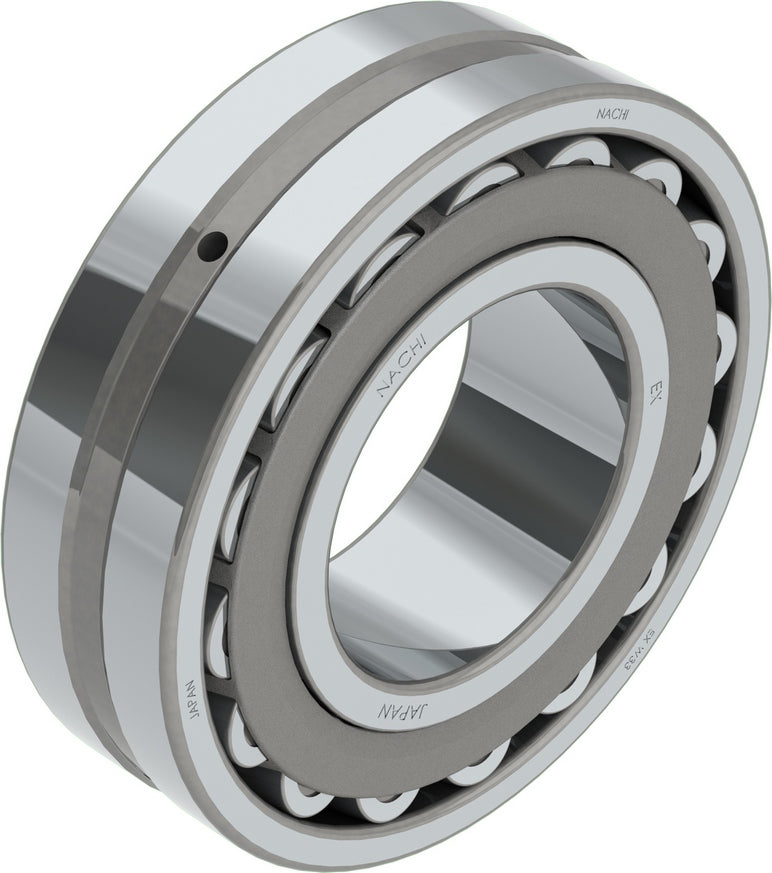

Nachi America - 22326EXQW33VCS207 Nachi is proud to introduce our new Vibrating Screen Bearing for applications with high impact or heavy vibrations. Nachi integrated a hardened steel cage into the standard EXQ High Capacity Bearings. The EXQ-V cage is 10 times more impact-resistant than standard cages.
Features
The new EXQ-V cage has increased tensile strength is more fatigue resistant and more resistant to wear. Nachi’s EXQ-V spherical roller bearing design maintains high load capacities by utilizing the longest length largest diameter rollers in the market. The floating guide ring and new EXQ-V cage design generates less heat and promotes lower operating temperatures. (W33) = Lubricant groove and holes on outer ring
Additional Information
Radial Internal Clearance C4
Dynamic Load Rating 1450000 N
Limiting Speed - Grease 1900 rpm
Cage Material Nitrocarburized Steel
Limiting Speed - Oil 2600 rpm
Inner Ring Material Steel
Bore Type Cylindrical Bore
Static Load Rating 1340000 N
Family Name Spherical Roller Bearings
Rolling Element Material Steel
Outer Ring Material Steel
Temperature Range [Max] 392 °F
ISO Precision Class Special
CategoryBall Bearings
Country of originJapan
Inner diameter130 mm
ManufactureNachi America
Mpn22326EXQW33VCS207
Outer diameter280 mm
SubcategorySpherical Roller Bearings
Weight62.83
Width93 mm
