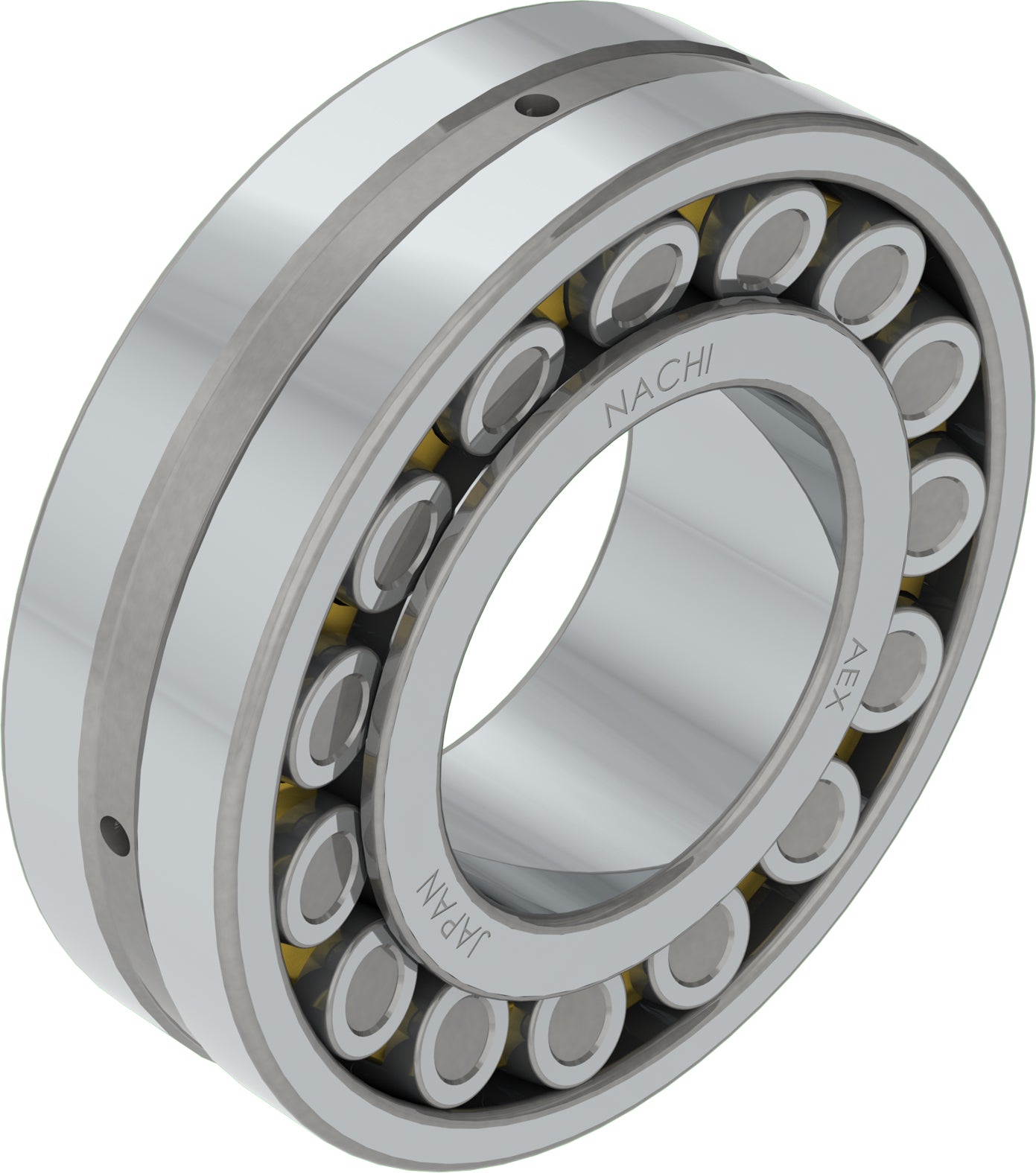

Nachi America - 23138EW33KC3 Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
Features
Symmetric rollers - Inner ring rib - (W33) = Lubricant groove and holes on outer ring - (K) = Tapered bore 1:12
Additional Information
Inner Ring Material Steel
ISO Precision Class P0
Static Load Rating 2120000 N
Cage Material Machined High Strength Brass Cage
Family Name Spherical Roller Bearings
Rolling Element Material Steel
Outer Ring Material Steel
Bore Type Tapered Bore
Dynamic Load Rating 1720000 N
Temperature Range [Max] 392 °F
Limiting Speed - Oil 1600 rpm
Radial Internal Clearance C3
Limiting Speed - Grease 1200 rpm
EAN or UPC 4991893856354
CategoryBall Bearings
Country of originJapan
Inner diameter190 mm
ManufactureNachi America
Mpn23138EW33KC3
Outer diameter320 mm
SubcategorySpherical Roller Bearings
Upc4991893856354
Weight77.16
Width104 mm
