category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
100 mm
manufacture:
Nachi America
mpn:
23220EXQW33C3
outer_diameter:
180 mm
subcategory:

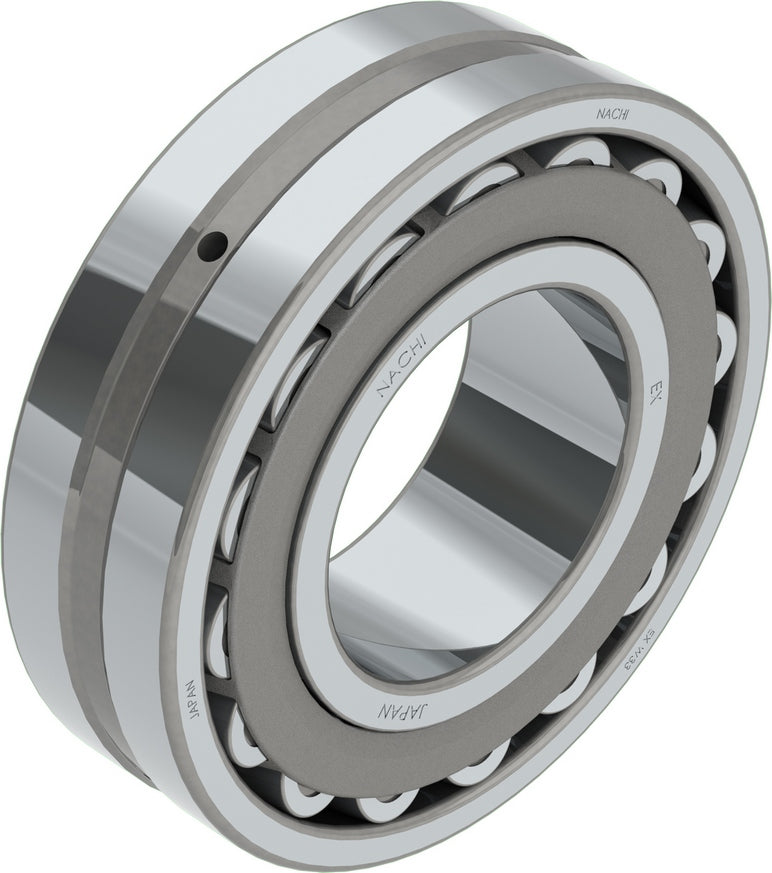

Spherical Roller Bearings
upc:
4991893534207
weight:
16.69
width:
60.3 mm
Product Description
Features
- High axial resistance load performance -Internal specifications have been optimized to greatly improve axial resistance load performance.
- High impact resistance performance (EXQ-V specifications) :The EXQ-V specifications are available, which have greatly improved impact resistance performance of a stamped steel cage by applying a special surface heat treatment. Dimension accuracy and radial internal clearance of the EXQ-V are special specifications for vibrating applications. Target range: see the Dimension Table.
- Service temperature of 200°C Standardized : Heat stabilization treatment and service temperature up to 200°C. Low temperature rise and higher permissible rotation Heat generation of the bearing has been reduced by stabilizing the roller movement during rotation, realizing the world's highest permissible rotation.
- Long life : Long life has been realized by optimized internal specifications and using high cleanliness steel
