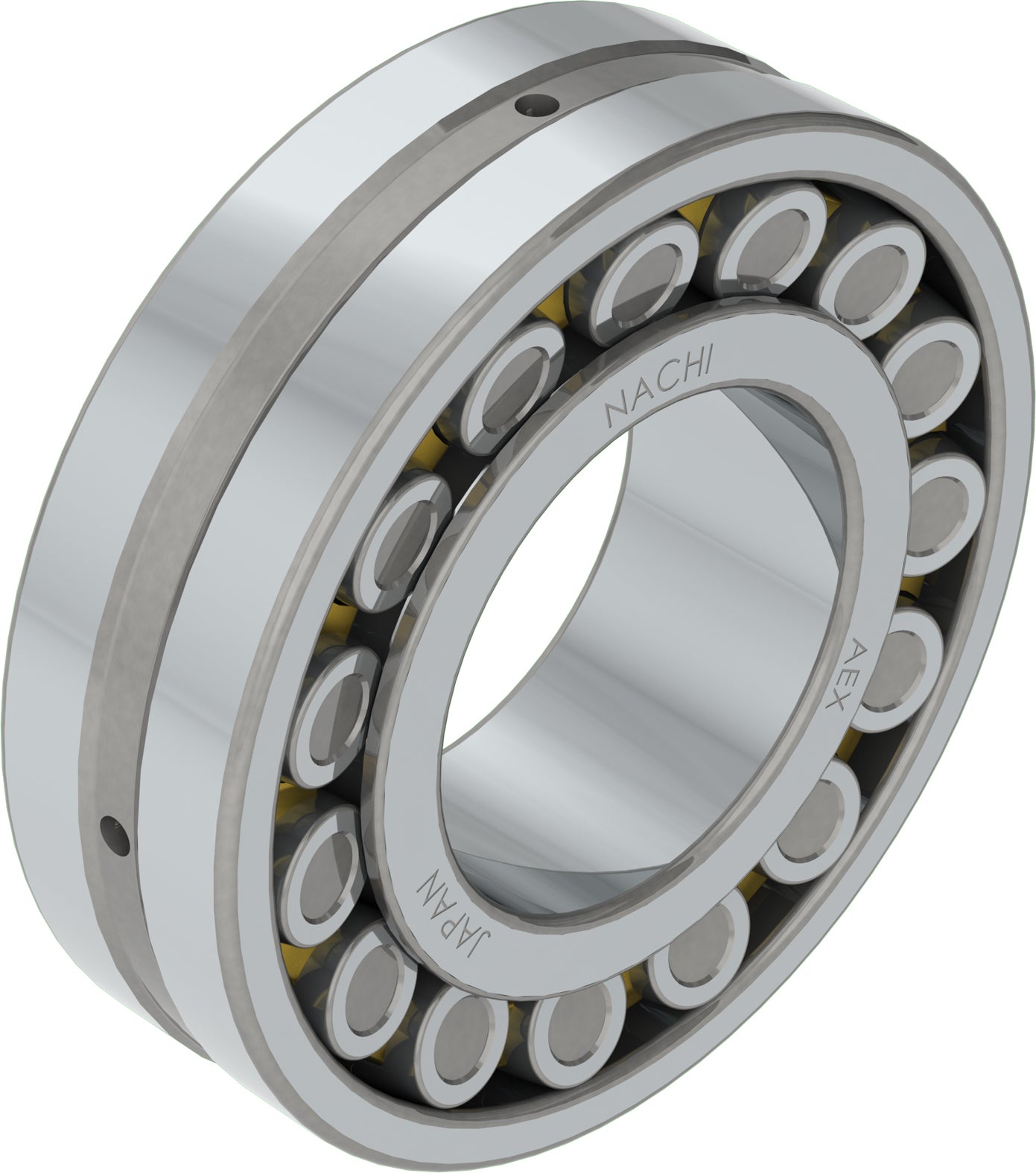

Nachi America - 23230AXW33C3 Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
Features
Asymmetric rollers - Inner Ring Rib - (W33) = Lubricant groove and holes on outer ring - (K) = Tapered bore 1:12
Additional Information
ISO Precision Class P0
Temperature Range [Max] 392 °F
Outer Ring Material Steel
Static Load Rating 1530000 N
Limiting Speed - Grease 1900 rpm
Bore Type Cylindrical Bore
Dynamic Load Rating 1320000 N
Family Name Spherical Roller Bearings
Cage Material Machined High Strength Brass Cage
Inner Ring Material Steel
Rolling Element Material Steel
Radial Internal Clearance C3
Limiting Speed - Oil 2700 rpm
EAN or UPC 4991893536744
CategoryBall Bearings
Country of originJapan
Inner diameter150 mm
ManufactureNachi America
Mpn23230AXW33C3
Outer diameter270 mm
SubcategorySpherical Roller Bearings
Upc4991893536744
Weight52.90
Width96 mm
