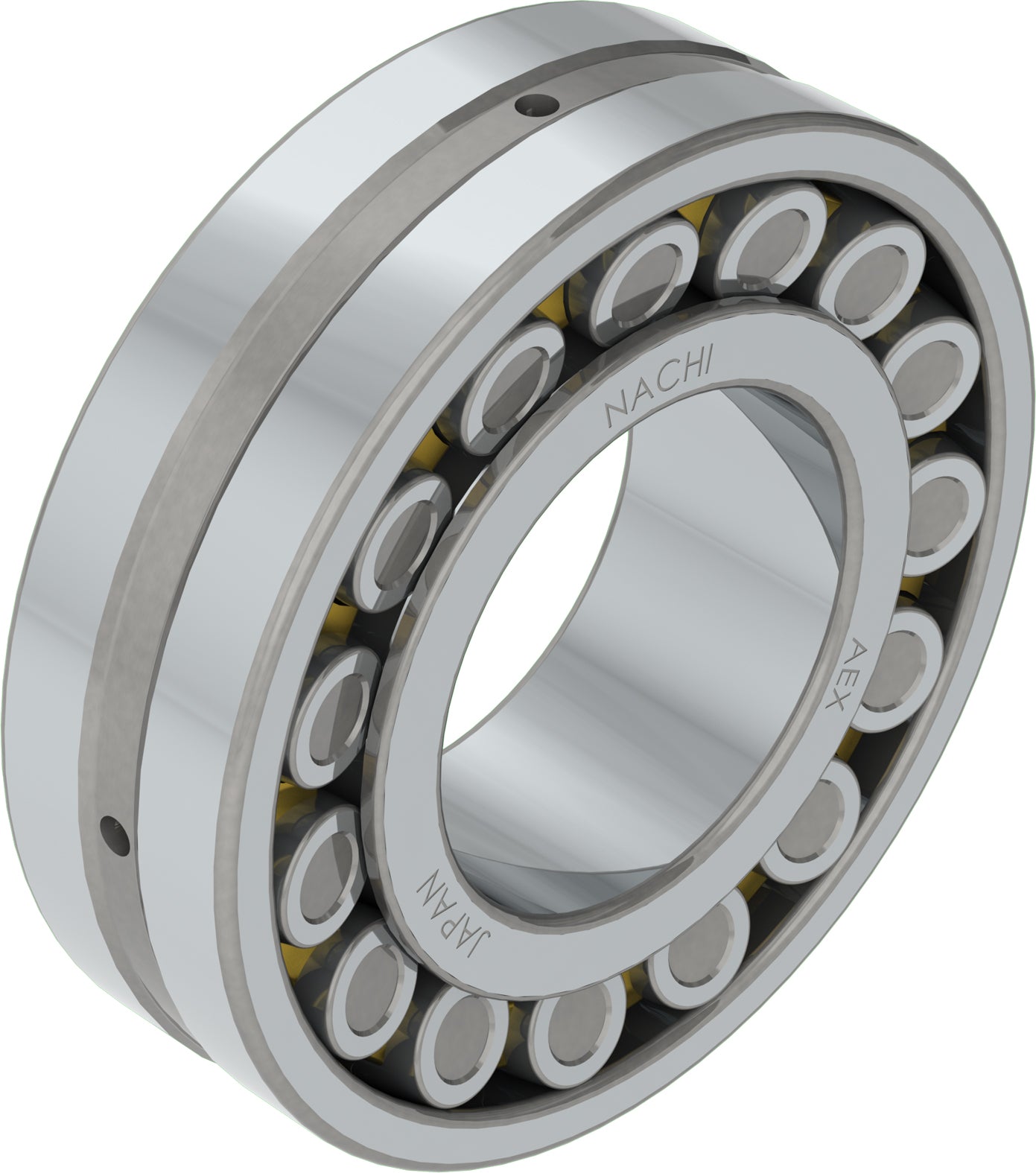

Nachi America - 24038EW33C3 Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
Features
Symmetric rollers - Inner ring rib - (W33) = Lubricant groove and holes on outer ring - (K) = Tapered bore 1:12
Additional Information
ISO Precision Class P0
Inner Ring Material Steel
Static Load Rating 1920000 N
Outer Ring Material Steel
Cage Material Machined High Strength Brass Cage
Dynamic Load Rating 1420000 N
Limiting Speed - Oil 1800 rpm
Bore Type Cylindrical Bore
Limiting Speed - Grease 1300 rpm
Family Name Spherical Roller Bearings
Rolling Element Material Steel
Radial Internal Clearance C3
Temperature Range [Max] 392 °F
EAN or UPC 4991893545548
CategoryBall Bearings
Country of originJapan
Inner diameter190 mm
ManufactureNachi America
Mpn24038EW33C3
Outer diameter290 mm
SubcategorySpherical Roller Bearings
Upc4991893545548
Weight54.23
Width100 mm
