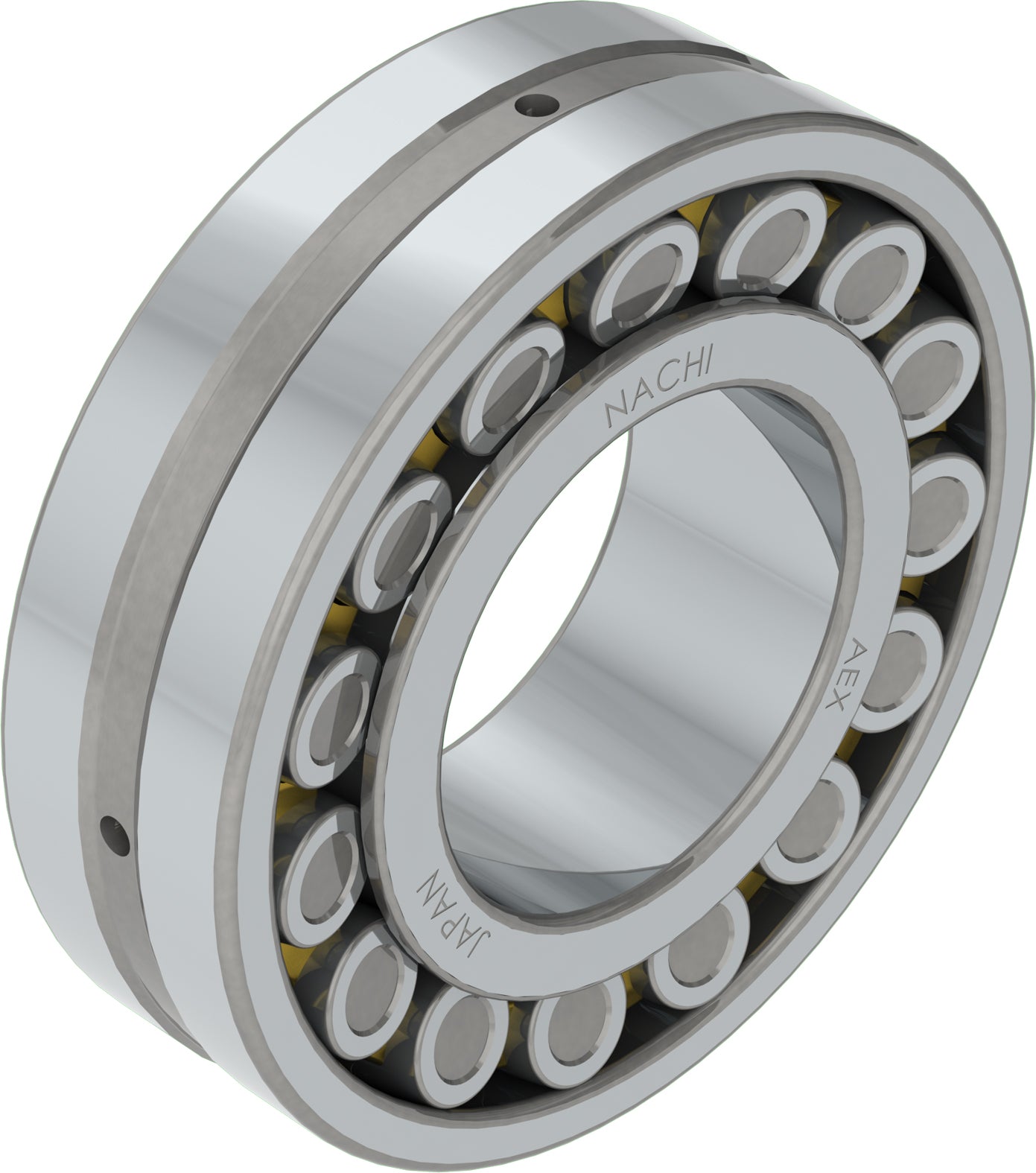

Nachi America - 24134EW33C3 Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
Features
Symmetric rollers - Floating center guide ring - (W33) = Lubricant groove and holes on outer ring - (K) = Tapered bore 1:12
Additional Information
Cage Material Steel
Limiting Speed - Grease 1100 rpm
Outer Ring Material Steel
Static Load Rating 1650000 N
Family Name Spherical Roller Bearings
Dynamic Load Rating 1360000 N
Radial Internal Clearance C3
Rolling Element Material Steel
Inner Ring Material Steel
Temperature Range [Max] 392 °F
Limiting Speed - Oil 1500 rpm
Bore Type Cylindrical Bore
ISO Precision Class P0
EAN or UPC 4991893549126
CategoryBall Bearings
Country of originJapan
Inner diameter170 mm
ManufactureNachi America
Mpn24134EW33C3
Outer diameter280 mm
SubcategorySpherical Roller Bearings
Upc4991893549126
Weight59.30
Width109 mm
