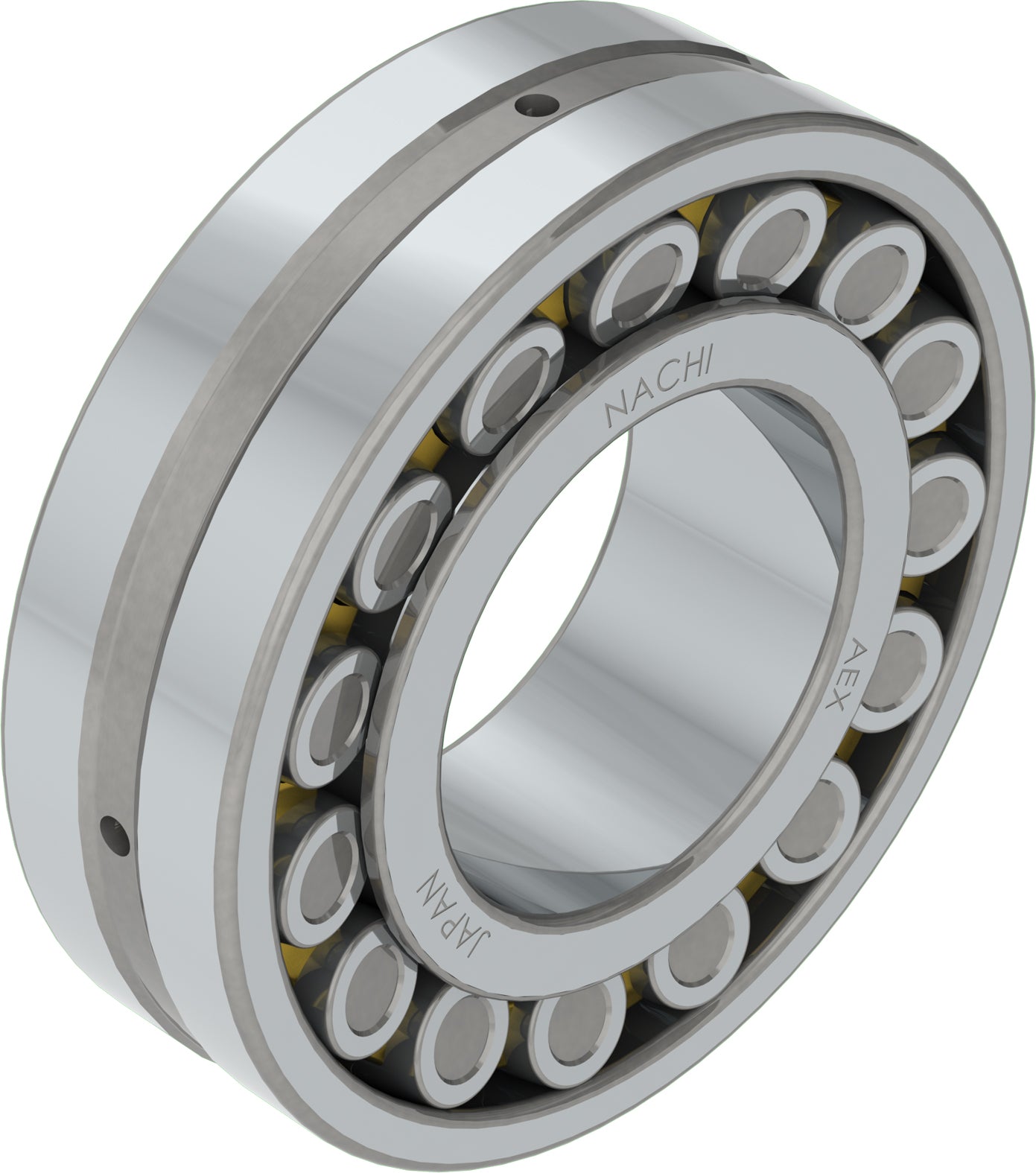

Nachi America - 24138EW33C3 Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
Features
Symmetric rollers - Inner ring rib - (W33) = Lubricant groove and holes on outer ring - (K) = Tapered bore 1:12
Additional Information
Inner Ring Material Steel
Static Load Rating 2380000 N
ISO Precision Class P0
Cage Material Machined High Strength Brass Cage
Family Name Spherical Roller Bearings
Bore Type Cylindrical Bore
Outer Ring Material Steel
Temperature Range [Max] 392 °F
Radial Internal Clearance C3
Dynamic Load Rating 1900000 N
Limiting Speed - Grease 1200 rpm
Limiting Speed - Oil 1600 rpm
Rolling Element Material Steel
EAN or UPC 4991893549430
CategoryBall Bearings
Country of originJapan
Inner diameter190 mm
ManufactureNachi America
Mpn24138EW33C3
Outer diameter320 mm
SubcategorySpherical Roller Bearings
Upc4991893549430
Weight85.32
Width128 mm
