category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
85 mm
manufacture:
Nachi America
mpn:
29317EX
outer_diameter:
150 mm
subcategory:
Spherical Roller Bearings
upc:
4991893556247
weight:
6.33
width:
39 mm
Product Description

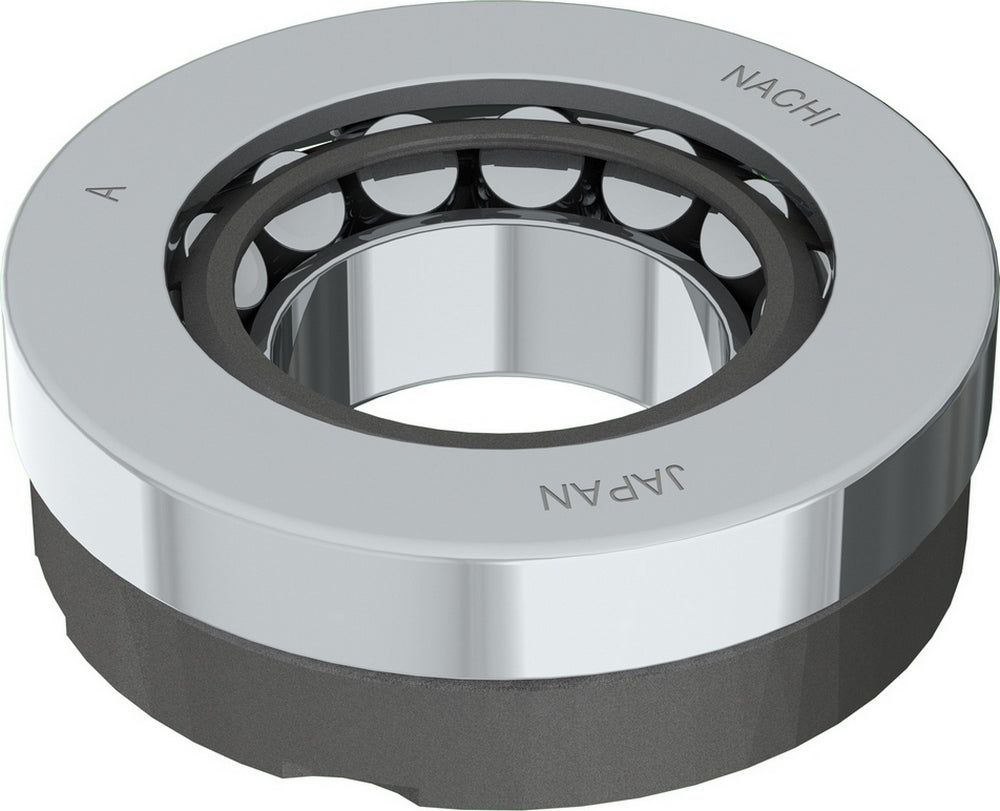

NACHI Spherical Roller Thrust Bearings utilize barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for up to 2° of angular misalignment. There are two basic designs
Additional Information
ISO Precision Class P0
Static Load Rating 1060000 N
Bearing Type Thrust
Dynamic Load Rating 365000 N
Bore Type Cylindrical Bore
Limiting Speed - Grease 1600 rpm
Outer Ring Material Steel
Inner Ring Material Steel
Radial Internal Clearance CN/C0
Cage Material Steel
Limiting Speed - Oil 2700 rpm
Temperature Range [Max] 392 °F
Rolling Element Material Steel
Family Name Spherical Roller Bearings
EAN or UPC 4991893556247
