Nachi America

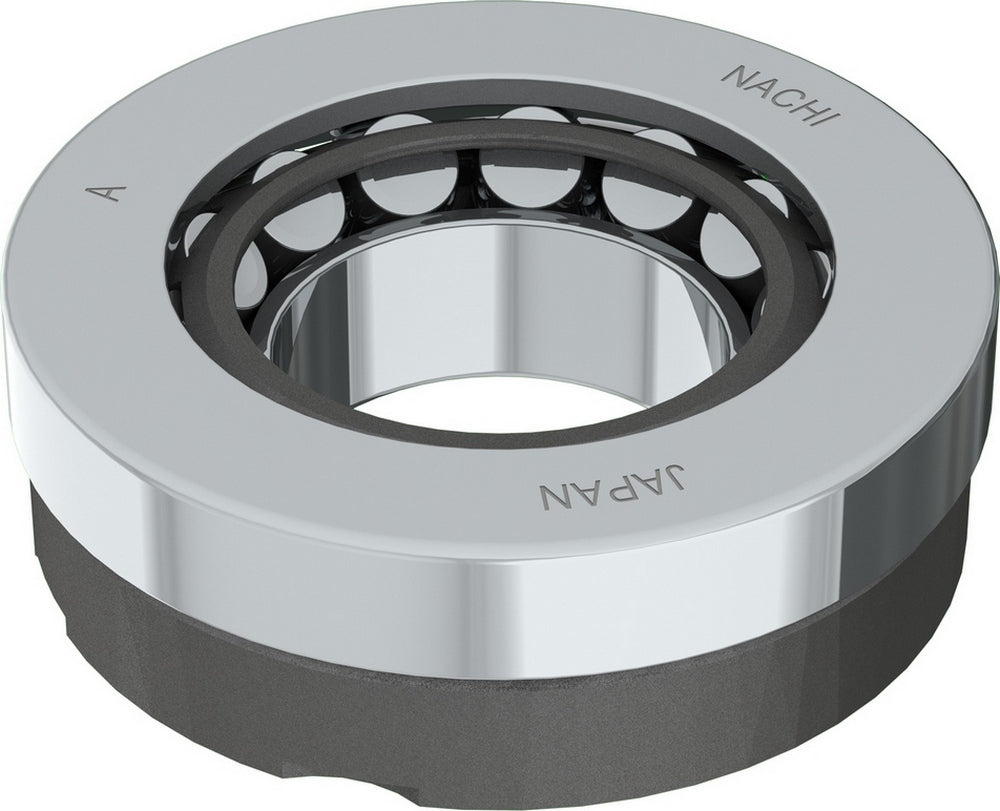

Nachi America 29318EX Spherical Roller Bearings

Nachi America 29318EX Spherical Roller Bearings

Dropship

SKU kpi113-29318EX

$908.35 USD
$908.35 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Ball Bearings
country_of_origin: Japan
inner_diameter: 90 mm
manufacture: Nachi America
mpn: 29318EX
outer_diameter: 155 mm
subcategory: Spherical Roller Bearings
upc: 4991893556315
weight: 6.75
width: 39 mm

Product Description

NACHI Spherical Roller Thrust Bearings utilize barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for up to 2° of angular misalignment. There are two basic designs

  • A conventional “E-Type” design uses a machined brass cages while the “EX-Type” design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life.

    Additional Information

    Rolling Element Material Steel
    Family Name Spherical Roller Bearings
    Outer Ring Material Steel
    Limiting Speed - Grease 1600 rpm
    Cage Material Steel
    Bearing Type Thrust
    Static Load Rating 1070000 N
    Dynamic Load Rating 355000 N
    Bore Type Cylindrical Bore
    ISO Precision Class P0
    Temperature Range [Max] 392 °F
    Radial Internal Clearance CN/C0
    Inner Ring Material Steel
    Limiting Speed - Oil 2700 rpm
    EAN or UPC 4991893556315
