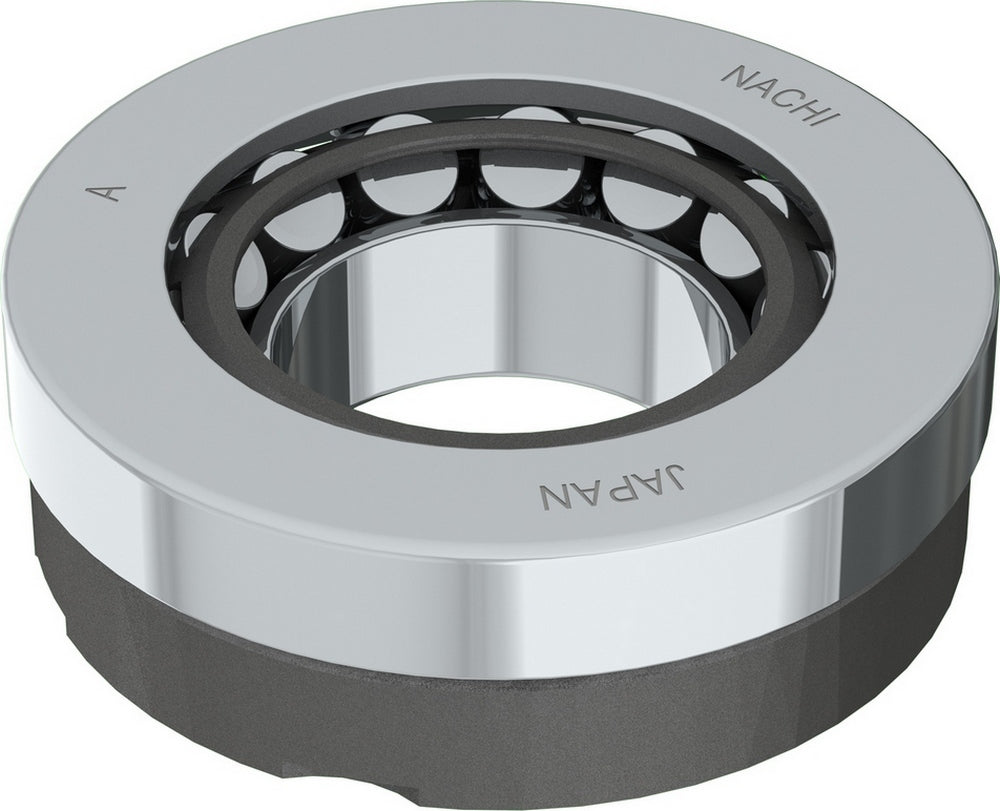

Nachi America 29324EX Spherical Roller Bearings

Nachi America 29324EX Spherical Roller Bearings

Dropship

SKU kpi113-29324EX

MPN : 29324EX

$1,464.43 USD
$1,464.43 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Nachi America - 29324EX NACHI Spherical Roller Thrust Bearings utilize barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for up to 2° of angular misalignment. There are two basic designs

  • A conventional “E-Type” design uses a machined brass cages while the “EX-Type” design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life.

    Additional Information

    Cage Material Steel
    Outer Ring Material Steel
    Bore Type Cylindrical Bore
    Inner Ring Material Steel
    ISO Precision Class P0
    Dynamic Load Rating 670000 N
    Radial Internal Clearance CN/C0
    Static Load Rating 2160000 N
    Bearing Type Thrust
    Rolling Element Material Steel
    Temperature Range [Max] 392 °F
    Family Name Spherical Roller Bearings
    Limiting Speed - Grease 1100 rpm
    Limiting Speed - Oil 1900 rpm
    EAN or UPC 4991893556643
    • CategoryBall Bearings
    Country of originJapan
    Inner diameter120 mm
    ManufactureNachi America
    Mpn29324EX
    Outer diameter210 mm
    SubcategorySpherical Roller Bearings
    Upc4991893556643
    Weight17.41
    Width54 mm
