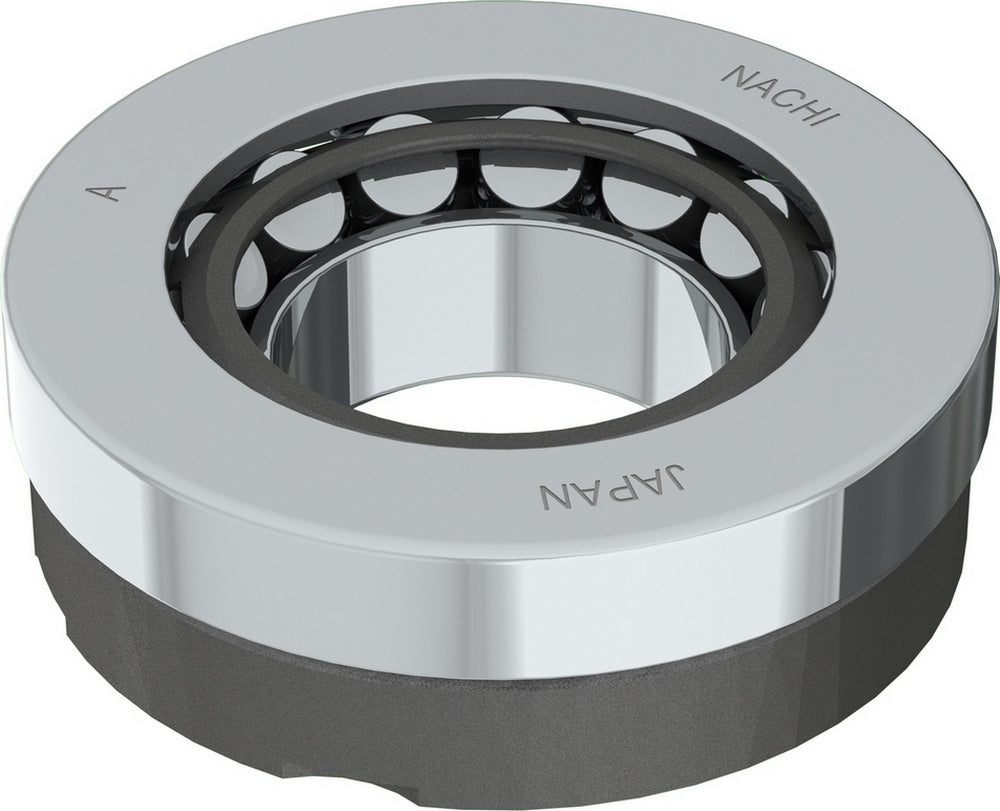

Nachi America 29326EX Spherical Roller Bearings

Nachi America 29326EX Spherical Roller Bearings

Dropship

SKU kpi113-29326EX

MPN : 29326EX

$1,594.38 USD
$1,594.38 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Nachi America - 29326EX NACHI Spherical Roller Thrust Bearings utilize barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for up to 2° of angular misalignment. There are two basic designs

  • A conventional “E-Type” design uses a machined brass cages while the “EX-Type” design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life.

    Additional Information

    ISO Precision Class P0
    Bearing Type Thrust
    Limiting Speed - Grease 1000 rpm
    Temperature Range [Max] 392 °F
    Bore Type Cylindrical Bore
    Rolling Element Material Steel
    Family Name Spherical Roller Bearings
    Static Load Rating 2440000 N
    Dynamic Load Rating 770000 N
    Inner Ring Material Steel
    Outer Ring Material Steel
    Limiting Speed - Oil 1800 rpm
    Cage Material Steel
    Radial Internal Clearance CN/C0
    EAN or UPC 4991893556780
    • CategoryBall Bearings
    Country of originJapan
    Inner diameter130 mm
    ManufactureNachi America
    Mpn29326EX
    Outer diameter225 mm
    SubcategorySpherical Roller Bearings
    Upc4991893556780
    Weight20.84
    Width58 mm
